Quick Details
- Place of Origin:Henan
- Brand Name:Sitong
- Model Number: YJV VV YJLV VLV
- MOQ:1000 meter
- Certificate: ISO9001/CE/UL/CCC
- Voltage: 600/1000 Volts and below
- Application: Underground
- Standard:IEC60245
- Material:PVC or XLPE
- Package:Wooden(Steel) Drum
- Port:Qingdao or Shanghai
- Conductor Matel: Copper /Aluminum
Overview
Product Description:
1.Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.
2.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.
3.In terms of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard
GB/T 12706,IEC 60502 and relevant domestic and international standard.
| 0.6/1KV 5 Core PVC Insulated Power Cable | ||||||
|
No. of Cores x Cross Section |
Rated Voltage |
Main Insulation Thickness |
Reference Outside Diameter(mm) |
Reference Weight(kg/km) | Application/ | |
| (No.xmm2) | (mm) | CU Conductor | AL Conductor | Specification | ||
| 5*4 | 0.6/1KV | 1 | 17.7 | 394 | 266 |
Mainly designed for electrical power transmission and distribution lines. (Can be make with XLPE insulation or Steel Tape or Steel Wire Armored as your request,) |
| 5*6 | 1 | 19 | 517 | 323 | ||
| 5*10 | 1 | 22.6 | 787 | 454 | ||
| 5*16 | 1 | 25.5 | 1115 | 590 | ||
| 5*25 | 1.2 | 29.8 | 1670 | 861 | ||
| 5*35 | 1.2 | 33.3 | 2212 | 1091 | ||
| 5*50 | 1.4 | 38.5 | 3114 | 1526 | ||
| 5*70 | 1.4 | 39.5 | 3975 | 1764 | ||
| 5*95 | 1.6 | 43.3 | 5328 | 2338 | ||
| 5*120 | 1.6 | 46.4 | 6129 | 2810 | ||
| 5*150 | 1.8 | 51.5 | 8200 | 3497 | ||
| 5*185 | 2 | 56.7 | 10061 | 4269 | ||
| 5*240 | 2.2 | 75.5 | 13290 | 5655 | ||
| 5*300 | 2.4 | 82.5 | 16495 | 3919 | ||

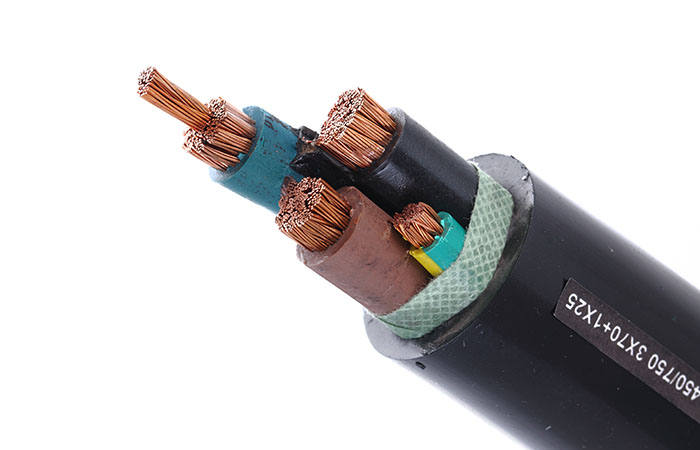

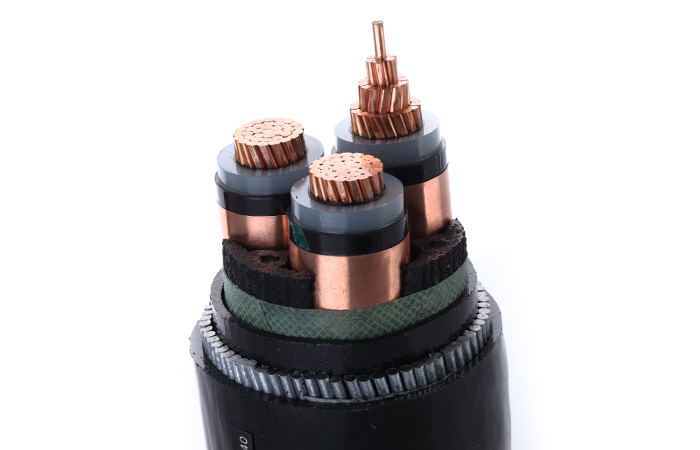

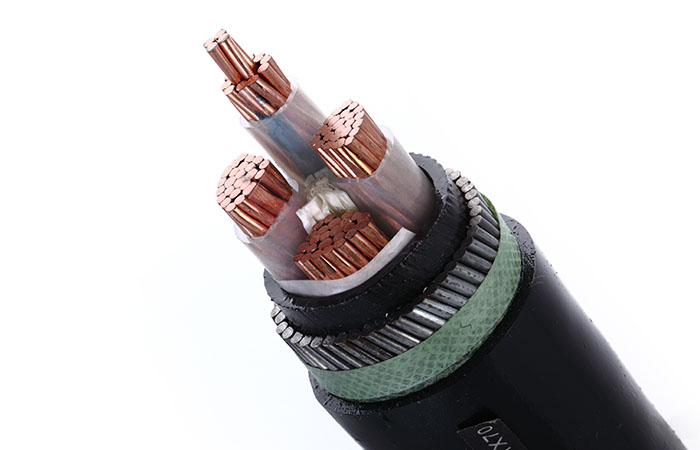

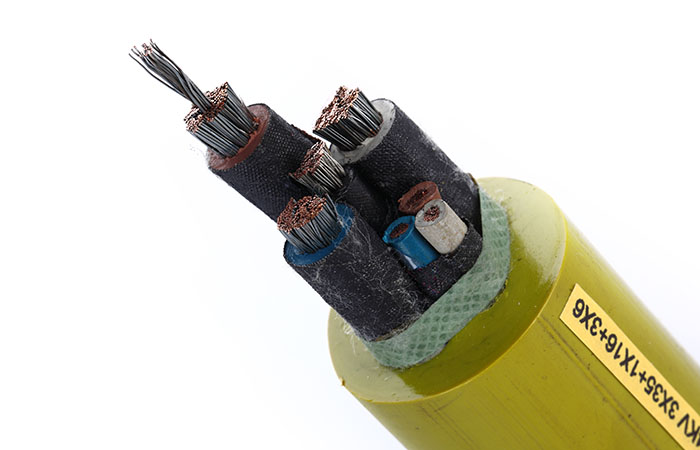

Product Photo
