Low Voltage Aerial Bundled Cable LV ABC 0,6/1 KV Cable

ⅠApplications: Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90C for cross liked polyethylene insulated conductors. Ⅱ Standards We could produce the cable according to many standards: ICEA S-76-474, ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC we will do ou

Supply Ability:5000 Kilometer/Kilometers per Month
Transport: Shipping
Parameter:ated Voltage0.6-- 1kv

+86-371-65341360
sale@sitongcable.com
0086 15138668963

Quick Details

Place of Origin:henan

Brand Name:sitong

Model Number:abc cable 1core 2core Three-phase cable

MOQ:1kilometer

Certificate:ISO9001

Voltage:Low Voltage

Application:Overhead

Standard:BS IEC ASTM DIN

Material:XLPE insulation

Package:Standard Wooden Drum

Port:Qingdao ,/Shanghai / Tianjin

Conductor Matel: Aluminum conductor

Overview

ⅠApplications:

Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.

Ⅱ Standards

We could produce the cable according to many standards: ICEA S-76-474, ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC we will do our best to meet your requirements

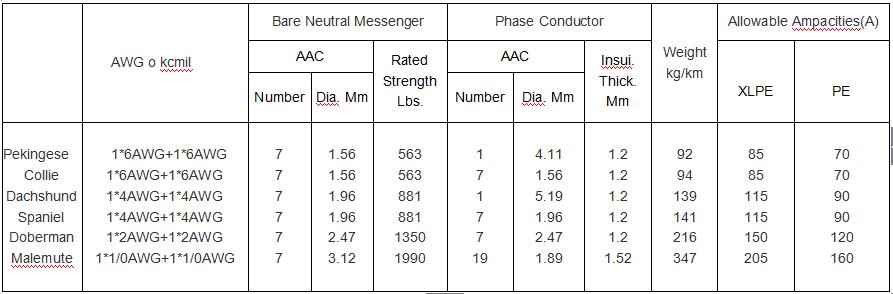

ⅢSpecification

1. Phase conductor: Aluminum wire, 1350-H19 2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced 3. The material of insulation: XLPE,PE,PVC 4. The Voltage: 600V-2200V

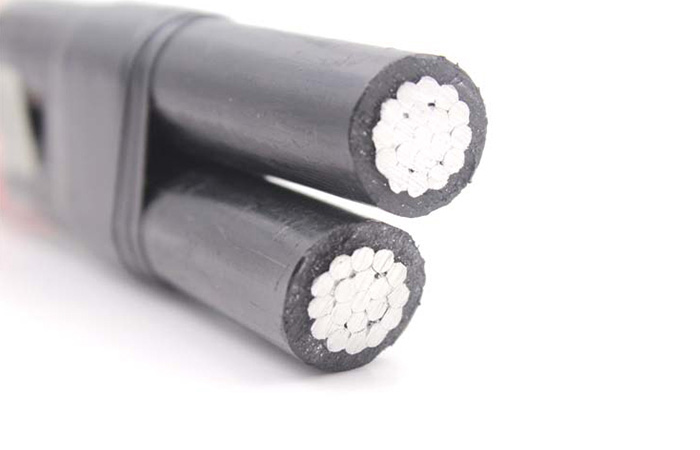

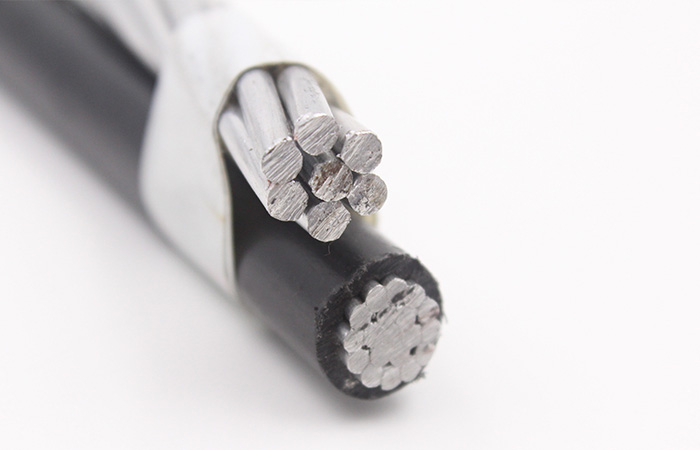

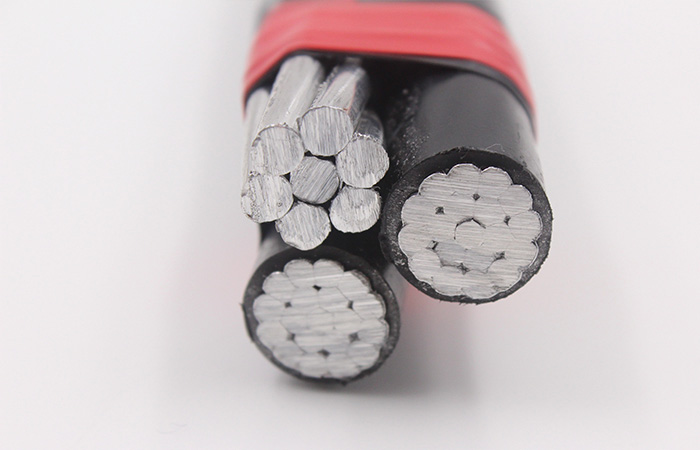

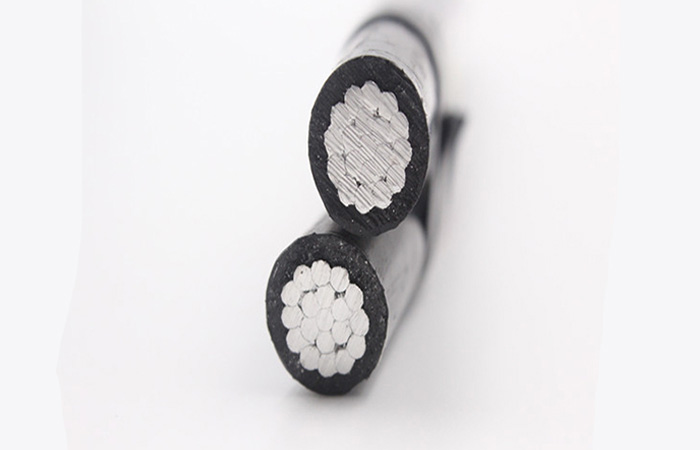

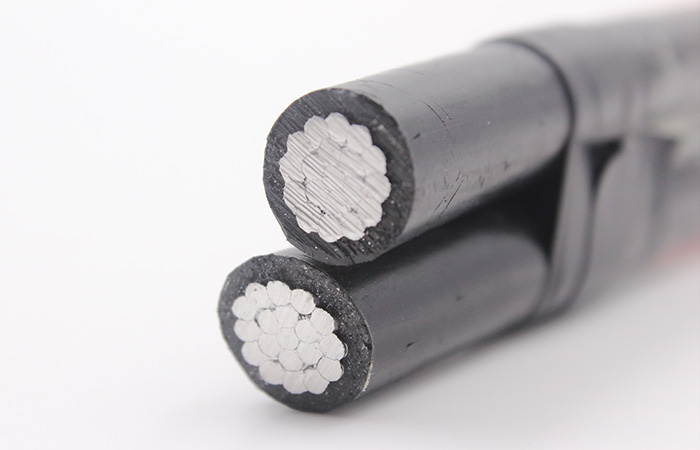

Product Photo
Process

Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

We have ZERO tolerate for flaw products,quality you can trust.

Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

Third-party inspection is welcomed,we are happy to cooperate.

RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

Package

Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

Outer surface of reel/drum is reinforced with steel strip for additional strength.

Our package measures are more than solid for overseas shipping.

Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
