Quick Details
- Place of Origin:China henan
- Brand Name:sitong
- Model Number:Concentric Cable
- MOQ:1kilometer
- Certificate:ISO9001
- Voltage:Low Voltage
- Application:overhead
- Standard:BS IEC ASTM DIN
- Material:Aluminum
- Package:Wooden Drum
- Port:Qingdao ,/Shanghai / Tianjin
- Conductor Matel:Aluminum conductor
Overview
APPLICATION
Service entrance or consumer mains for underground residential distribution and unenclosed situations where the neutral/earth screen provides protection against the hazards of electric shock.
The screen offers the same or lower resistance as a phase conductor and has 80% minimum coverage to facilitate mechanical protection of the phase conductor. Suitable for glanding.
STANDARD: AS/NZS 4961
VOLTAGE:600/1000V
CONDUCTOR: Aluminium
INSULATION: XLPE, X-90 RED
SHEATH: PVC, V-90 Black
NORMAL OPERATING TEMP: 900C

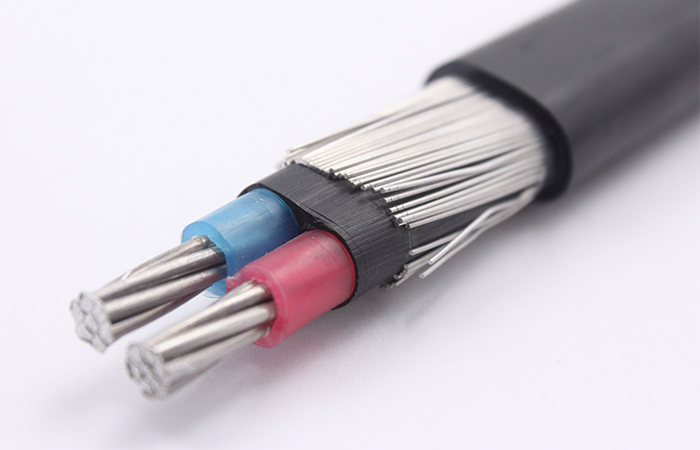

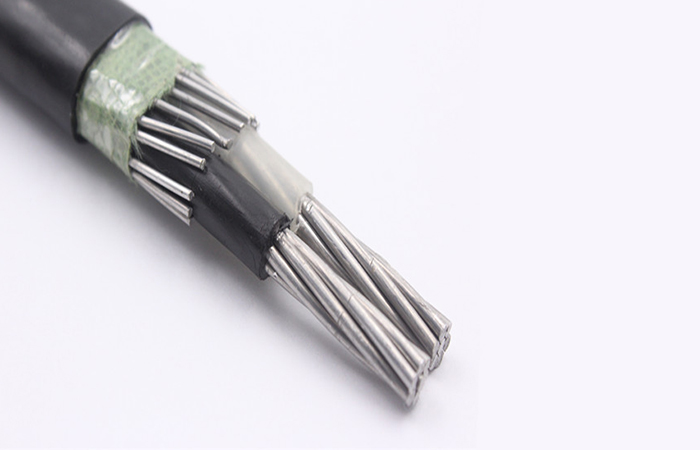

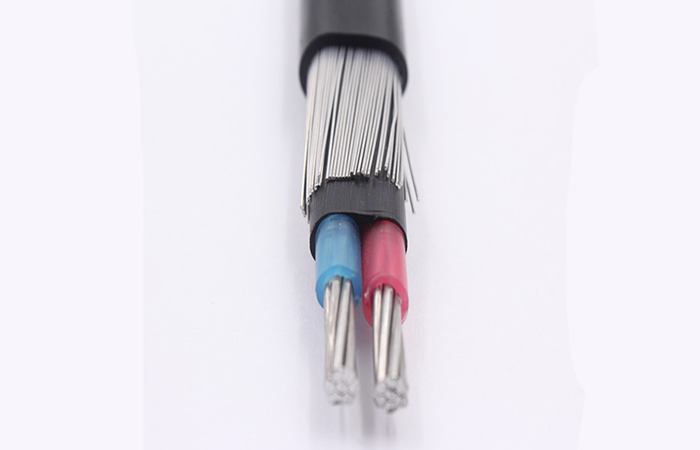

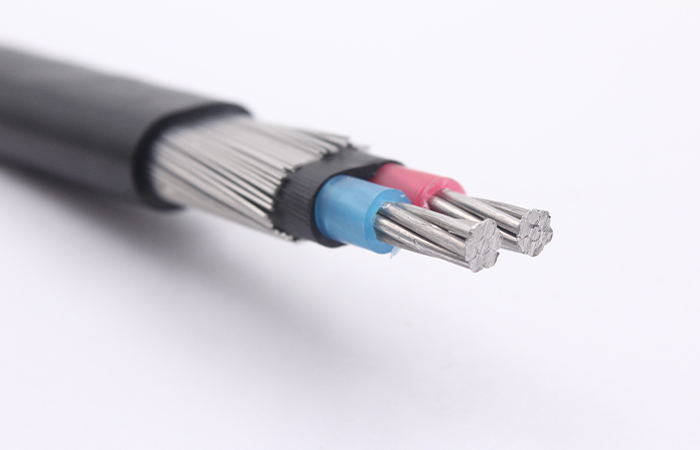

Product Photo
