Concentric cable

The concentric cable is used as electric service entrance from the power distribution;network until the meter panel (especially where it is required to prevent "black" losses;or electric power robbery),

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:Specification for distribution cables of rated voltage 0.6/1 kV
  • +86-371-65341360
  • sale@sitongcable.com
  • 0086 15138668963
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:Concentric cable
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:Aluminum
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum

    Overview

    1. Applications

    The concentric cable is used as electric service entrance from the power distribution;network until the meter panel (especially where it is required to prevent "black" losses;or electric power robbery), and as feeder cable from the meters panel until the panel;or general distribution panel, just as it is specified in the National Electrical Code;This type of conductor can be used in dry and wet places, directly buried or outdoors;its maximum temperature of operation is 70°C(PVC or PE Insulation) or 90 ?C(XLPEInsulation) and its voltage of service for all the applications is 600 V.

    2. Specifications

    2.1 Conductor: Copper or Aluminum or 8000 series Aluminum Alloy

    2.2 Insulation: PVC or PE or XLPE

    2.3 Concentric neutral: copper or Aluminum or 8000 series Aluminum Alloy

    2.4 Sheath: PVC or PE or XLPE

    3. References

    The following documents were referred to during the preparation of this specification. In

    cases of conflict, the provisions of this specification shall take precedence.

    Unless otherwise specified, the latest revision, edition and amendments shall apply.

    IEC 60502-1: Power Cables with extruded insulation and their accessories for rated

    voltages from 1kV (Um = 1.2kV) up to 30kV (Um = 36kV) – Part 1:

    Cables for rated voltages of 1kV (Um = 1.2kV0 and 3kV (Um = 3.6kV).

    UL 44: Thermoset-Insulated Wires and Cables

    UL 854: Service-Entrance Cables

    4.Our design and production of parts of concentric cable

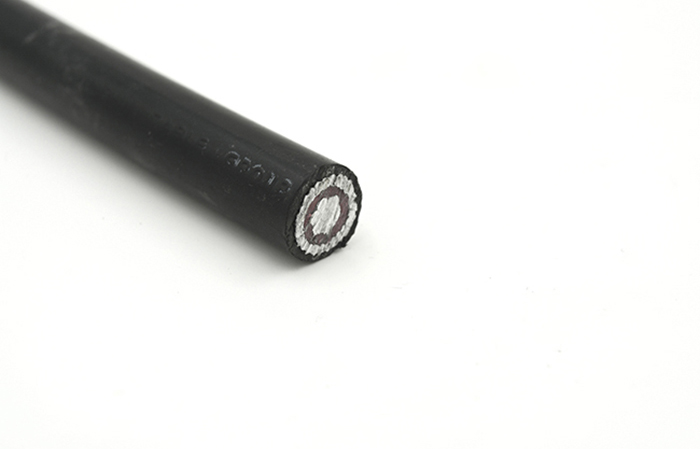

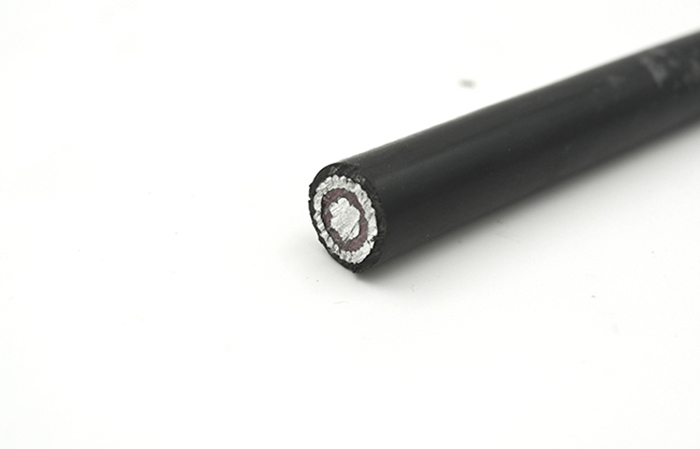

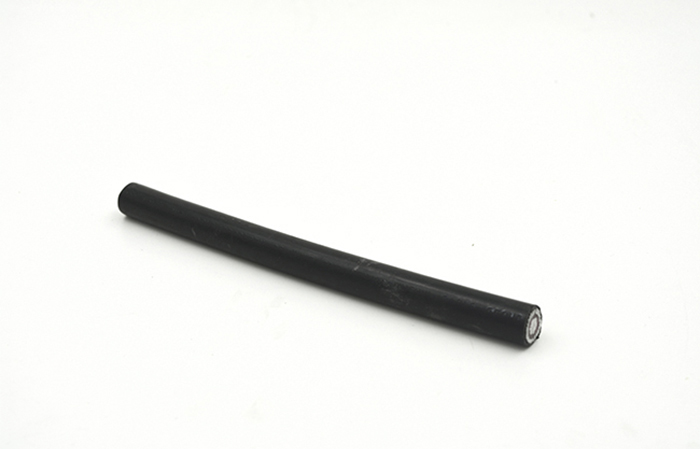

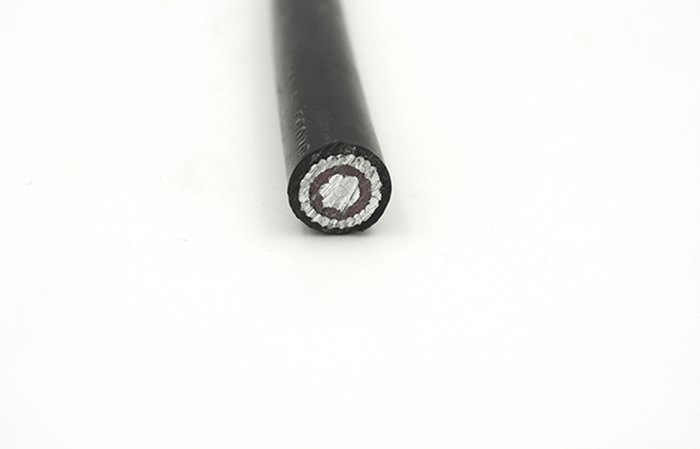

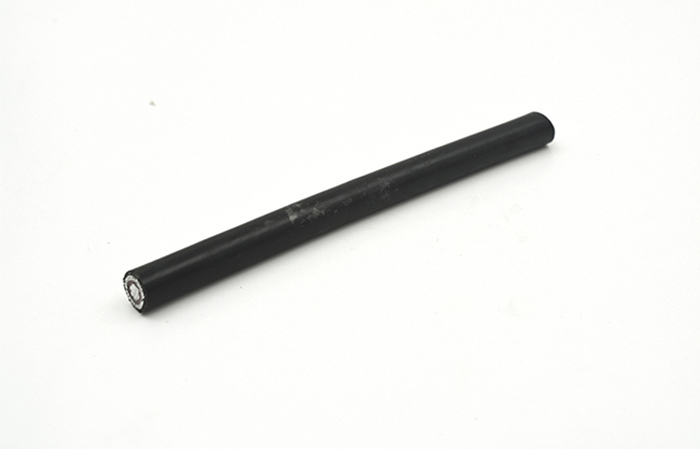

    Product Photo

    Concentric cable

    Concentric cable

    Concentric cable

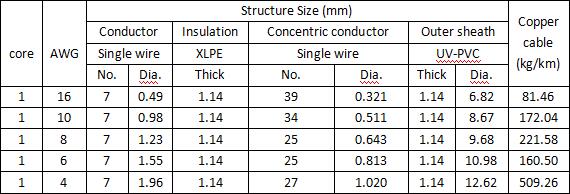

  • Concentric cable parameter

  • Process

    Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

    Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

    We have ZERO tolerate for flaw products,quality you can trust.

    Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

    Third-party inspection is welcomed,we are happy to cooperate.

    RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength.

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
