HTLS Conductor Gap Type Conductor GTACSR GZTACSR Thermal-Resistant High Strength Steel Core

HTLS Conductor Products --- GAP type conductor is composed of layers of thermal resistant aluminum alloy wires around a high strength steel core.

Certification Standards

ISO 9001 IEC CCC CE

Implementation Standards

Q 320623 AP 35
IEC 61089
IEC 62420
IEC 62219

Product Introduction

Definition

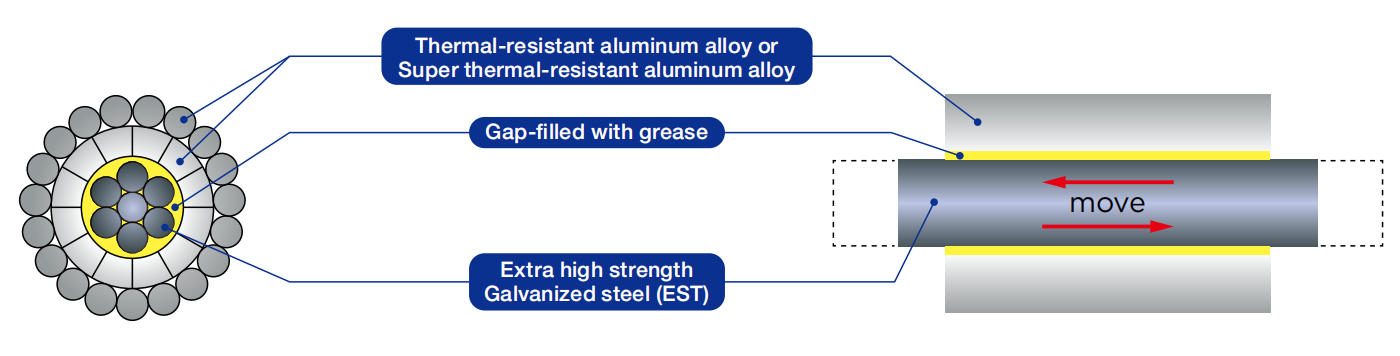

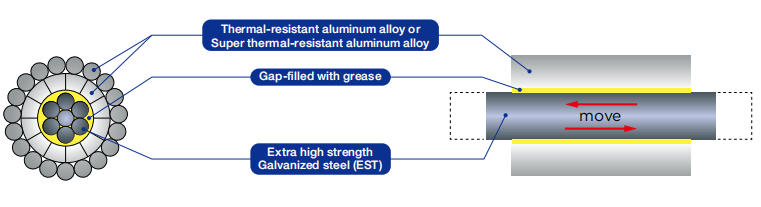

HTLS Conductor Products---GAP type conductor is composed of layers of thermal-resistant aluminum alloy wires around a high-strength steel core. Grease is filled in the Gap to make the steel core move freely, which gives the conductor its special characteristics.

Standard

Q 320623 AP 35
IEC 61089
IEC 62420
IEC 62219

Technical Features

Capacity Expansion Characteristics

The capacity of GAP type conductor at 150°C is 1.6 times the ACSR of the same area at 90°C.
The capacity of GAP type conductor at 210°C is twice the ACSR of the same area.
The capacity at 210°C is twice the ACSR of the same area at 90°C.

Sag Characteristics

Limits the increase in sag with increasing temperature by stress transfer above the knee point.
Limits the increase in sag by stress transfer above the knee point.

More HTLS Conductor Products

ZTACIR, Super-Thermal Resistant Aluminum Alloy Conductor Aluminum-Clad Steel INVAR Reinforced.
XTACIR, Extra-Thermal Resistant Aluminum Alloy Conductor Aluminum-Clad Steel INVAR Reinforced.
GTACSR, Gapped Thermal-Resistant Aluminum Alloy Conductor Steel Reinforced.
GZTACSR, Gapped Super-Thermal Resistant Aluminum Alloy Conductor Steel Reinforced.
ACSS, Aluminum Conductor Steel Supported.
ACCR, Aluminum Conductor Composite Reinforced.
ACCC, Aluminum Conductor Composite Core.

Technical Specifications

TYPICAL PARAMETERS

Code	Areas		Diameter		Breaking load	DC resistance at 20℃	Weight	Current capacity
	Al	Steel	Structure 1	Structure 2	Breaking load	DC resistance at 20℃	Weight	GTACSR	GZTACSR
	mm²		mm	mm	kN	Ω/km	Kg/km	A
185/30	197.60	31.67	19.7	18.7	81.1	0.1483	801	879	1095
240/30	250.60	31.67	20.6	20.6	89.7	0.1170	948	1017	1270
260/40	265.30	43.11	22.6	21.7	109.3	0.1106	1084	1068	1335
300/40	290.20	43.11	23.7	22.4	113.2	0.1010	1147	1124	1406
370/40	370.50	40.08	26.0	24.8	121.0	0.0792	1348	1316	1651
400/50	408.30	49.48	27.5	26.1	141.6	0.0718	1523	1403	1762
450/50	444.71	49.48	28.4	27.2	147.4	0.0660	1644	1484	1867
500/60	523.50	63.55	31.2	29.5	183.3	0.0560	1951	1655	2087
630/50	642.70	52.83	34.0	32.0	186.0	0.0456	2195	1887	2386

Application Fields

High voltage power transmission lines

Overhead power distribution systems

Thermal-resistant power transmission applications

High-capacity power transmission networks

Packaging & Shipping

All cables will be packaged in different materials based on their outer diameter and net weight, and can be customized according to requirements

FAQ

Generally, we pack our goods in Wooden Wheel, roll packing. We also can use your custom package.

We can supply the free sample.

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Yes, we have 100% test before delivery.

We keep good quality and competitive price to ensure our customers benefit.

Tell us which kind of certificate you need, we will provide those for you or help you get the certificates.

Tell us your schedule when you are going to Zhengzhou, we will pick you up to our factory.

30% T/T in advance, then 70% T/T or L/C balance when shipment.

We are the manufacturer and exporter.

It is generally within 15-30 days after your prepayment. It also depends on the quantity.
