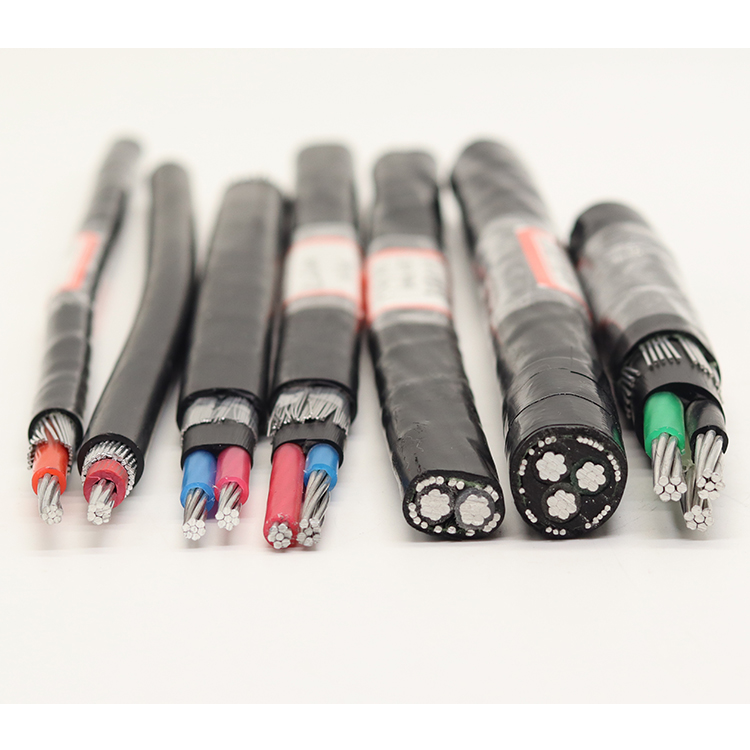

3*6awg Aluminum Concentric Cable
Concentric Cable, Aluminum Concentric Cable, 3*6AWG Concentric Cable, 2*6+1*6 Concentric Cable, 3*4AWG, 3*2AWG,3*8AWG. Aluminum Alloy Series 8000 Concentric Cable. Round Concentric Cable
Implementation Standards
- ASTM-B
- ASTM-D
- UL
Product Introduction
The Concentric Cable: A Smarter Backbone for Power Distribution Networks
In the world of power distribution, efficiency, reliability, and cost-effectiveness are paramount. Enter the concentric cable—a specialized design where a neutral conductor is helically wound around the insulated phase conductor. This ingenious aluminum concentric cable is a cornerstone for modern electrical infrastructure, particularly as a service entrance cable, efficiently delivering power from the utility line to the building's main distribution panel.
Product Spotlight: The 600/1000V Round Aluminum Concentric Cable
This robust cable is engineered for durability and performance in overhead or duct installations. Below is a breakdown of its key construction and compliance features:
| Component | Specification | Standard / Material |
|---|---|---|
| Conductor | Phase & Concentric Neutral | 8000 Series Aluminum Alloy |
| Insulation | Primary Layer | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Bedding | Polyvinyl Chloride (PVC) |
| Tape | Barrier | Non-absorbent material (or as per OEM) |
| Outer Sheath | Final Protection | XLPE, PVC, or Polyethylene (PE) |
| Standards | Quality & Safety | ASTM-B, ASTM-D, UL |
Core Advantages & Applications
The 600/1000V concentric cable is predominantly used for service entrance applications, forming the critical link in power transmission from the grid to residential, commercial, and industrial facilities. Its design offers distinct benefits:
- Integrated & Self-Supporting: The concentric neutral provides a return path and mechanical strength.
- Superior Protection: The layered construction with XLPE insulation offers excellent resistance to heat, moisture, and abrasion.
- Cost-Effective Power: The use of aluminum alloy makes it a lightweight and economical solution without compromising on conductivity or strength.
Why Choose This Concentric Cable?
Sourcing a high-quality aluminum concentric service entrance cable brings direct value:
* Factory-Direct Value: Eliminating intermediaries ensures competitive pricing.
* Proven Quality & Expertise: Manufacturing is backed by extensive experience in cable production.
* Risk-Free Evaluation: Suppliers often provide free samples for testing and validation.
In summary, the aluminum concentric cable is more than just wire; it's a smarter, integrated solution for safe and reliable power delivery at the service entrance. Its robust, standards-compliant construction makes it a trusted choice for engineers and utilities worldwide.
Technical Specifications
Cable Specifications
| Cable Type | Conductor (mm) | Insulation Thickness (mm) | Concentric Conductor (mm) | Outer Sheath Thickness (mm) | O.D of the cable (mm) |
| 3X8AWG | 7/1.23 | 1.14 | 65/0.405 | 1.14 | 11.3x17.3 |
| 3X6AWG | 7/1.55 | 1.14 | 65/0.511 | 1.14 | 13.2x20.0 |
| 3X4AWG | 7/1.96 | 1.14 | 65/0.643 | 1.52 | 14.7x22.9 |
| 3X2AWG | 7/2.47 | 1.14 | 65/0.823 | 1.52 | 16.6x26.3 |
Application Fields
Service entrance to power transmission
Packaging & Shipping
All cables will be packaged in different materials based on their outer diameter and net weight, and can be customized according to requirements
