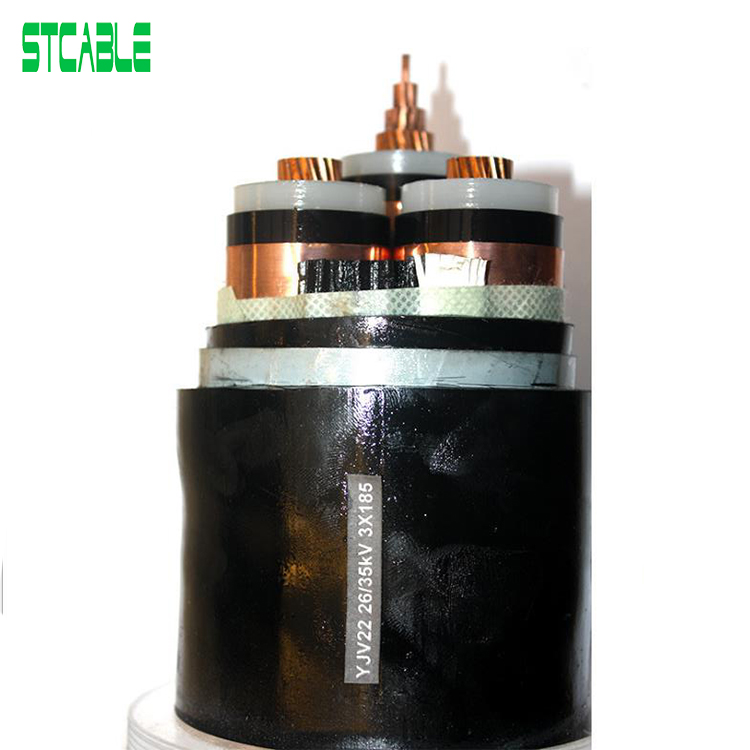

Aluminum-Copper Conductor Low Power Cable

Construction

• Conductor: Plain annealed copper or aluminium complying with IEC 60228/BS 6360. Copper conductors shall be stranded and aluminium conductors shall be either solid or stranded.
• Conductor Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely. The minimum thickness is 0.3mm and the maximum resistivity shall not exceed 500 Ohm-m at 90°C.
• Insulation: Cross-linked polyethylene compound XLPE (GP8) conforming to BS 7655-1.3 or EPR (GP7), conforming to BS 7655-1.2.
• Insulation Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the insulation. The minimum thickness is 0.3 mm and the maximum resistivity is 500 Ohm-m at 90°C.
• Metallic Layer: The metallic layer shall be applied over each core or applied as a collective screen. The metallic screen shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires.
• Over Sheath: Overall sheath comprises a layer of extruded either PVC type 9 conforming to BS 7665-4.2 or MDPE type TS2 conforming to BS 7655-10.1. LSZH can be offered as an option.

Physical Properties

• Operating Temperature: up to 90°C
• Temperature Range: -5°C (PVC or LSZH sheath); -20°C (PE sheath)
• Short Circuit Temperature: 250°C (short circuit duration up to 5 seconds)
• Bending Radius: 12 x OD
