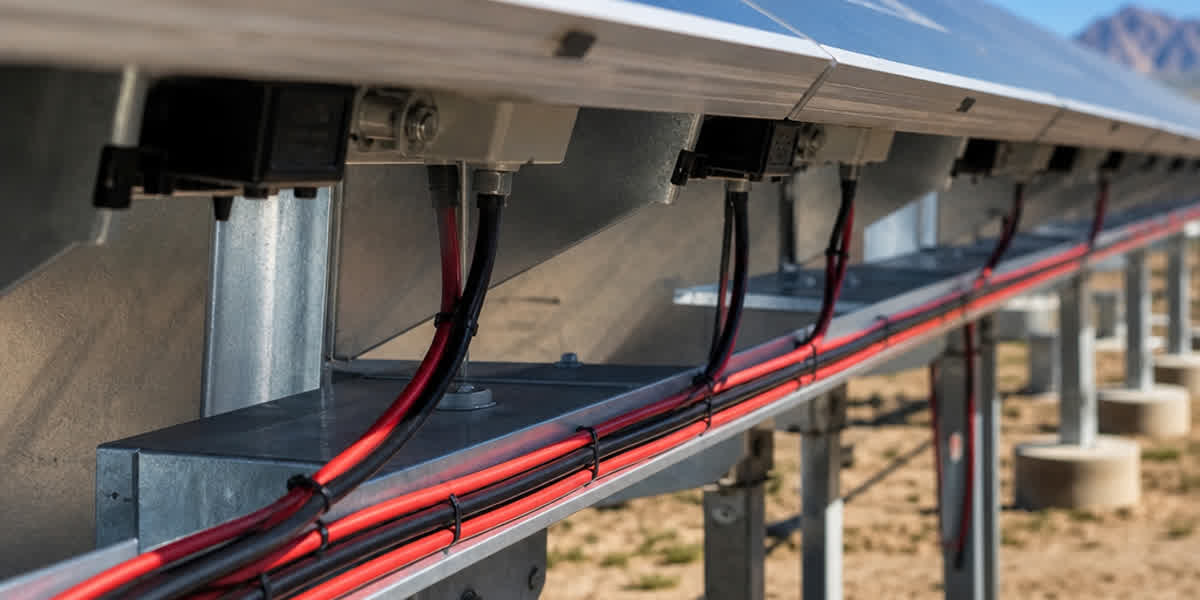

Solar photovoltaic (PV) DC cabling serves as the critical nervous system of modern solar energy generation, interconnecting strings of photovoltaic modules to combiner boxes, string inverters, and central inverters across harsh outdoor environments. In utility-scale solar farms and commercial rooftop installations operating at 1000V DC and 1500V DC, DC cables must withstand extreme ultraviolet (UV) radiation, severe diurnal temperature fluctuations (-40°C to +90°C ambient, with continuous conductor temperatures up to 120°C), atmospheric ozone, soil moisture, and continuous mechanical stress on single-axis tracker assemblies. Sizing and installing PV cables correctly directly determines system energy yield, levelized cost of energy (LCOE), and long-term fire safety over a 25- to 30-year operational asset life.
Engineering teams selecting cables for solar projects must distinguish specialized cross-linked photovoltaic cables from conventional building wire or standard industrial power cables. Selecting premium solar cable range certified to international benchmarks such as EN 50618 (H1Z2Z2-K) and IEC 62930 ensures chemical resistance, flame retardancy, and electron-beam cross-linked polymer integrity. This comprehensive technical field guide provides electrical engineers, solar EPC contractors, and operations and maintenance (O&M) teams with actionable sizing methodologies, mechanical routing guidelines, connector crimping protocols, commissioning test procedures, and long-term troubleshooting matrices for photovoltaic installations.
1. Solar DC Cable Construction, Material Science & International Standards
Conventional cables insulated with standard Polyvinyl Chloride (PVC) or standard cross-linked polyethylene (XLPE) degrade rapidly under direct solar UV exposure, thermal cycling, and high-voltage DC electrical stress. Specialized solar cables utilize electron-beam cross-linked polyolefin (XLPO) materials for both insulation and outer sheath, engineered over flexible tinned copper conductors.
1.1 Structural Anatomy of Photovoltaic Cables
A standard single-core solar PV cable consists of three primary engineered layers: 1. Conductor: Electrolytic tinned annealed copper, flexible stranded Class 5 per IEC 60228. Tin plating provides vital corrosion resistance against oxidation, sulfur compounds, and electrolytic degradation in high-humidity and marine-adjacent solar installations. 2. Primary Insulation: Cross-linked Polyolefin (XLPO / Halogen-Free Flame Retardant), electron-beam cured to form a high-density, three-dimensional thermoset polymer network resistant to thermal deformation at 120°C. 3. Outer Protective Sheath: Cross-linked Polyolefin copolymer, UV-resistant, ozone-resistant per EN 50396, flame-retardant (IEC 60332-1-2), low-smoke zero-halogen (LSZH per IEC 61034-2 and IEC 60754-1/2), and colored black or red for DC polarity distinction.
1.2 Comparison of International PV Cable Standards
Photovoltaic projects worldwide specify cables according to European (EN), International (IEC), or North American (UL/NEC) standards. Understanding the design parameters across these standards is essential for project compliance.
| Parameter / Specification | EN 50618 (H1Z2Z2-K) | IEC 62930 (62930 IEC 131) | UL 4703 (PV Wire) |
|---|---|---|---|
| Rated Voltage ($U_0/U$) | 1.0/1.0 kV AC, 1.5/1.5 kV DC | 1.0/1.0 kV AC, 1.5/1.5 kV DC | 600V, 1000V, 2000V DC |
| Max Permissible Operating Voltage | 1.8 kV DC (conductor-conductor) | 1.8 kV DC (conductor-conductor) | 2.0 kV DC (UL 2000V rating) |
| Conductor Type | Class 5 Tinned Copper (IEC 60228) | Class 5 Tinned Copper (IEC 60228) | Class B/C/K Stranded Cu/Al (ASTM) |
| Operating Ambient Temp. Range | -40°C to +90°C | -40°C to +90°C | -40°C to +90°C / +105°C |
| Max Conductor Temp. (20,000 hrs) | 120°C | 120°C | 90°C / 105°C / 125°C wet/dry |
| Short-Circuit Withstand Temp. | 250°C (up to 5 seconds) | 250°C (up to 5 seconds) | 250°C (up to 5 seconds) |
| Insulation & Jacket Material | Halogen-Free Cross-Linked Polyolefin | Halogen-Free Cross-Linked Polyolefin | XLPE, EPR, or Cross-Linked Polymer |
| UV Resistance Standard | EN 50618 Annex A / EN 50289-4-17 | IEC 62930 Clause 6.4 / ISO 4892-2 | UL 2556 (720 hrs Xenon / Carbon Arc) |
| Direct Burial Approval | Optional test (EN 50618 Annex E) | Optional test (IEC 62930) | Rated Direct Burial (DB) marked |
| Expected Service Lifetime | ≥ 25 Years at 90°C continuous | ≥ 25 Years at 90°C continuous | ≥ 25–30 Years |
For broader balance-of-plant requirements including substation interconnects, projects also incorporate high-reliability medium & low voltage power cables and specialized building wire and electric wire inside inverter stations.
2. DC Cable Sizing, Ampacity Derating & Voltage Drop Engineering
Undersized PV cables lead to excessive resistive losses, accelerated thermal aging, and dangerous localized overheating. Oversized cables, conversely, inflate balance-of-system (BOS) capital expenditures and create mechanical termination difficulties inside compact combiner boxes and string inverters.
2.1 Current-Carrying Capacity (Ampacity) per EN 50618 Table A.1 & A.2
The baseline ampacity of single-core H1Z2Z2-K solar cables in free air (ambient temperature of 60°C, conductor temperature of 120°C) is detailed below:
| Nominal Cross-Section ($mm^2$) | Max Conductor Resistance at 20°C ($\Omega/km$) | Free Air Single Cable (60°C Ambient) ($A$) | Single Cable on Surface (60°C Ambient) ($A$) | Two Touching Cables on Surface (60°C) ($A$) |
|---|---|---|---|---|
| 2.5 $mm^2$ | 8.21 | 41 | 39 | 33 |
| 4.0 $mm^2$ | 5.09 | 55 | 52 | 44 |
| 6.0 $mm^2$ | 3.39 | 70 | 67 | 57 |
| 10.0 $mm^2$ | 1.95 | 98 | 93 | 79 |
| 16.0 $mm^2$ | 1.24 | 132 | 125 | 107 |
| 25.0 $mm^2$ | 0.795 | 176 | 167 | 142 |
| 35.0 $mm^2$ | 0.565 | 218 | 207 | 176 |
2.2 Thermal and Grouping Derating Factors
In real-world PV field conditions, cables operate in high ambient temperatures (such as rooftop environments where roof surface temperatures exceed ambient by 15°C to 25°C) and in bundled cable trays. The effective ampacity $I_z$ must be derated:
$$I_z = I_0 imes f_{temp} imes f_{group}$$
Where: - $I_0$ = Base continuous current rating at 60°C ambient. - $f_{temp}$ = Ambient temperature correction factor. - $f_{group}$ = Grouping factor for multiple circuits installed in parallel.
Ambient Temperature Derating Table ($f_{temp}$) for 120°C Rated Cable:
- Up to 60°C: $1.00$
- 70°C: $0.92$
- 80°C: $0.84$
- 90°C: $0.75$
- 100°C: $0.65$
Cable Bundling & Tray Grouping Factors ($f_{group}$):
- 1 Circuit (Single pair + / - touching): $1.00$
- 2 Circuits (4 cables bundled in tray): $0.80$
- 3 Circuits (6 cables bundled in tray): $0.70$
- 4 to 6 Circuits (8 to 12 cables in tray): $0.60$
- 9 or more Circuits (dense tray installation): $0.50$
2.3 Voltage Drop Calculation & Target Thresholds
In DC string design, minimizing voltage drop ($V_d$) is essential for maximizing inverter maximum power point tracking (MPPT) efficiency. The industry standard target for DC string wiring from the farthest module to the inverter/combiner box is $\le 1.0\%$ to $1.5\%$, and the cumulative total DC drop (string plus DC feeder) should never exceed $2.0\%$.
The DC single-phase, two-wire loop voltage drop formula is:
$$V_d = rac{2 imes L imes I_{mp} imes R_{dc}}{1000}$$
$$\% V_d = \left( rac{V_d}{V_{string,mp}} ight) imes 100$$
Where: - $L$ = One-way circuit length (meters). - $I_{mp}$ = Module string maximum power current (Amperes). - $R_{dc}$ = Conductor DC resistance at operating temperature $T_c$ ($\Omega/km$). - $V_{string,mp}$ = Total string operating voltage at MPP ($V$).
Temperature-Adjusted Conductor Resistance Formula:
$$R_{T} = R_{20} imes [1 + lpha_{20} imes (T_c - 20)]$$
For tinned copper, temperature coefficient $lpha_{20} = 0.00393 ext{ /}^\circ ext{C}$. At typical summer operating temperature of $T_c = 75^\circ ext{C}$: - $4.0 ext{ mm}^2$ tinned copper: $R_{75} = 5.09 imes [1 + 0.00393 imes (75 - 20)] = 6.19\ \Omega/km$. - $6.0 ext{ mm}^2$ tinned copper: $R_{75} = 3.39 imes [1 + 0.00393 imes (75 - 20)] = 4.12\ \Omega/km$.
2.4 Worked Engineering Example: 1500V Utility Solar String Sizing
System Parameters: - PV String Configuration: 28 Bifacial 590W Modules in series. - String MPP Voltage ($V_{string,mp}$): $28 imes 41.5 ext{ V} = 1162 ext{ V DC}$. - String MPP Current with Bifacial Gain ($I_{mp}$): $14.2 ext{ A}$. - One-way Cable Distance to String Inverter ($L$): $75 ext{ meters}$ (150m total round-trip conductor loop). - Maximum Summer Operating Conductor Temp ($T_c$): $75^\circ ext{C}$.
Option A: Using $4.0 ext{ mm}^2$ Solar Cable ($R_{75} = 6.19\ \Omega/km$)
$$V_d = rac{2 imes 75 ext{ m} imes 14.2 ext{ A} imes 6.19\ \Omega/km}{1000} = 13.18 ext{ V}$$ $$\% V_d = \left( rac{13.18 ext{ V}}{1162 ext{ V}} ight) imes 100 = 1.13\% \quad ext{(Compliant with } \le 1.5\% ext{ string limit)}$$
Option B: Using $6.0 ext{ mm}^2$ Solar Cable ($R_{75} = 4.12\ \Omega/km$)
$$V_d = rac{2 imes 75 ext{ m} imes 14.2 ext{ A} imes 4.12\ \Omega/km}{1000} = 8.78 ext{ V}$$ $$\% V_d = \left( rac{8.78 ext{ V}}{1162 ext{ V}} ight) imes 100 = 0.76\% \quad ext{(High efficiency design)}$$
Engineering Decision: For string runs under 60 meters, $4.0 ext{ mm}^2$ meets the $1.0\%$ threshold. For long homeruns exceeding 65 meters on 1500V arrays, upgrading to $6.0 ext{ mm}^2$ recovers capital cost within 2.8 years through reduced $I^2R$ power loss.
3. Mechanical Routing & Field Installation Best Practices
Improper mechanical installation is responsible for over 70% of premature DC cable failures in utility-scale solar farms. Solar cables are exposed to constant thermal expansion, structural vibration, wind-induced galloping, and dynamic rotation on single-axis tracker torque tubes.
3.1 Critical Bending Radius Limits
Violating minimum bend radii damages the inner XLPO insulation crystalline structure and creates localized electrical stress points. - Fixed / Static Installation: Minimum $4 imes ext{Outer Diameter (OD)}$ to $5 imes ext{OD}$. (For a typical 6.0 mm OD cable, minimum bend radius = 30 mm). - Dynamic / Tracker Movement: Minimum $8 imes ext{OD}$ to $10 imes ext{OD}$ (Minimum 60 mm radius at tracker pivot junctions).
3.2 Single-Axis Tracker Cabling Protocols
On single-axis horizontal trackers (±60° rotation range), cables transition from moving solar module racks to stationary torque tubes: 1. Expansion Loops (Drip Loops): Maintain a calibrated service loop at every torque tube bearing pivot. The loop length must allow full rotational stroke without applying axial tension to connectors or module junction box strain reliefs. 2. Torque Tube Edge Protection: Solar cables routed through torque tube perforations or over steel flanges must pass through UV-stabilized neoprene or EPDM grommets. Direct metal-to-cable contact causes jacket chafing and catastrophic line-to-ground faults under daily tracking rotation. 3. Segregation of Polarities: Positive (+) and negative (-) DC conductors should be routed in parallel along the structural beam to minimize electromagnetic loop area (reducing lightning surge induced voltages), but secured with distinct spacing or dedicated channels to prevent inter-pole arcing if mechanical abrasion occurs.
3.3 Fastening Hardware: Stainless Steel Clips vs Cable Ties
- Module Edge Fasteners: Use ONLY 304 or 316 Stainless Steel PV Wire Clips with rolled edges (burr-free). Stainless steel clips provide 30-year corrosion resistance and continuous holding force under UV.
- Cable Ties: Standard nylon 66 cable ties degrade and snap within 12 to 24 months under solar UV. If non-metallic ties are used, specify Polyamide 12 (PA12) UV-weatherable black ties or ETFE (Tefzel) fluoropolymer ties rated for 20+ years of direct sunlight exposure.
- Fastener Spacing: Support cables at intervals of no greater than 600 mm (24 inches) along module frames and 900 mm (36 inches) along torque tubes. Never allow cable sagging to touch sharp steel structural members or ground vegetation.
3.4 Direct Burial and Underground Trenching Guidelines
When routing DC main homerun cables underground from array combiners to central inverter skids: - Trench Depth: Minimum 600 mm depth in open terrain; minimum 900 mm under access roads and vehicular crossing zones per IEC 60364-7-712 and NEC 300.5. - Bedding: Lay cables on a 100 mm bed of clean, sifted stone-free sand. Cover with a 100 mm top layer of sand before backfilling with native soil. - Mechanical Warning Tape: Install heavy-duty yellow polyethylene warning tape marked "CAUTION: BURIED 1500V DC SOLAR ELECTRIC LINE" 300 mm above the cable level. - Conduit Sealing: Seal all underground conduit entrances entering combiner boxes or inverters with closed-cell expanding electrical duct seal foam to prevent moisture ingress, rodent entry, and condensation chimney effects.
4. DC Connector Assembly, Crimping & Torquing (MC4 / MC4-EVO-2)
Faulty DC connectors are the single greatest contributor to thermal runaway and fire incidents in commercial and utility PV plants. A poorly crimped connector exhibits elevated contact resistance, generating localized heat exceeding 200°C under full 15A–30A string current.
4.1 The Golden Rule: Avoid Cross-Mating Different Connector Brands
⚠️ CRITICAL FIRE PREVENTION RULE: Never connect male and female connectors from different manufacturers (e.g., Stäubli MC4 mated with generic copies or other brands), even if they appear mechanically compatible ("MC4-compatible"). Microscopic dimensional tolerances, base alloy compositions, contact plating thicknesses, and thermal expansion coefficients differ between brands. Cross-mating produces high contact resistance ($> 2.5 ext{ m}\Omega$), water ingress, electrolytic corrosion, and arcing faults. IEC 62548 and UL 6703 strictly mandate matched connector pairs.
4.2 Step-by-Step Connector Assembly Procedure
- Cable Stripping: Use dedicated multi-stage solar wire strippers with calibrated blades sized for 4.0 mm² / 6.0 mm² XLPO insulation. Strip exactly 6.0 mm to 7.5 mm of conductor (per connector manufacturer technical data sheet). Ensure zero severed or splayed copper wire strands.
- Contact Pin Crimping: Use a calibrated, high-precision ratcheting crimp tool equipped with dedicated B-crimp (open-barrel) dies. Avoid standard electrical plier crimpers or hexagonal closed dies.
- Quality Check: The crimp must form a gas-tight, cold-welded compaction of all strands with no loose wires.
- Tensile Pull-Force Verification: Crimp strength must meet IEC 62852 standards (Minimum 310 N for 4.0 mm², 360 N for 6.0 mm², 450 N for 10.0 mm²).
- Contact Pin Insertion: Push the crimped contact pin into the connector housing until an audible and tactile "CLICK" occurs. Gently pull backward on the cable to verify positive mechanical barb engagement.
- End Cap Torquing: Tighten the cable gland back-cap using manufacturer-specific plastic assembly spanners. Torque to 2.5 to 3.0 N·m to compress the internal silicone/EPDM sealing ring uniformly around the cable outer jacket. Over-tightening crushes the cable; under-tightening compromises the IP68 waterproof rating.
5. Pre-Commissioning Testing, Quality Verification & Inspection Protocols
Prior to energization, electrical testing must verify circuit continuity, polarity, ground isolation, and insulation integrity in compliance with IEC 62446-1 (Grid connected PV systems – Testing, documentation and maintenance).
| Testing Stage | Test Equipment | Test Voltage / Parameters | Pass / Fail Acceptance Criteria |
|---|---|---|---|
| 1. Polarity Verification | Digital Multimeter (CAT III 1500V) | Open-circuit DC voltage | Positive (+) on red, Negative (-) on black; zero reversed strings |
| 2. String Open-Circuit Voltage ($V_{oc}$) | Calibrated PV Multimeter | $V_{oc}$ at module irradiance | Within $\pm 5\%$ of calculated expected string $V_{oc}$ |
| 3. String Short-Circuit Current ($I_{sc}$) | PV Analyzer / Clamp Meter | Direct string short-circuit | Within $\pm 5\%$ of calculated expected $I_{sc}$ adjusted for $W/m^2$ |
| 4. DC Insulation Resistance (Dry) | 1000V / 1500V DC Insulation Tester | 1500V DC applied for 60 seconds | $\ge 50 ext{ M}\Omega\cdot ext{km}$ (or $\ge 1.0 ext{ M}\Omega$ per string array) |
| 5. Wet Insulation Resistance Test | Wet Megger Test Tank / Sprayer | 1500V DC in surfactant water | $\ge 40 ext{ M}\Omega\cdot ext{km}$ (verifies jacket pinhole integrity) |
| 6. Earth Continuity of Support Structure | Low Resistance Ohmmeter | 200 mA test current | $\le 0.5\ \Omega$ between rack structural members |
| 7. Infrared Thermal Drone Inspection | UAV IR Camera (FLIR / Radiometric) | Full sun ($>700\ W/m^2$), loaded array | No connector $\Delta T > 10^\circ ext{C}$ above adjacent cable |
5.1 DC Insulation Resistance Testing Procedure (Megger Test)
- Isolate the DC string from the inverter or combiner box switch-disconnector.
- Short-circuit the positive (+) and negative (-) terminals of the string together.
- Connect the insulation tester's positive test lead to the shorted string terminals, and the ground test lead to the array grounding busbar/earthed metal frame.
- Apply 1500V DC test potential for 60 seconds.
- Record insulation resistance. If the reading drops below $1.0 ext{ M}\Omega$, isolate individual module jumpers to locate damaged outer sheath sections or water-logged connector housings.
6. O&M Preventive Maintenance Schedule & Troubleshooting Matrix
A robust preventive maintenance regime ensures solar DC cabling maintains high insulation resistance and eliminates thermal hotspot risks over decades of harsh outdoor exposure.
6.1 Recommended Preventive Maintenance Schedule
- Monthly (Automated): Continuous inverter MPPT residual current monitoring (RCM) and insulation resistance logging ($R_{iso}$) via SCADA alarms.
- Quarterly: Visual walk-through of tracker transition loops, inspecting for mechanical rubbing, sagging cables, and rodent activity.
- Bi-Annually: Infrared thermographic survey of all DC string combiner boxes, in-line fuse holders, and homerun cable terminations under peak irradiance ($>700\ W/m^2$).
- Annually: Full-site radiometric UAV thermal drone scan of all array module jumper connections. Random pull-testing and inspection of 5% of all field-made MC4 connectors.
- Every 5 Years: Comprehensive DC insulation resistance re-testing across all main underground DC feeder cables.
6.2 Field Failure Troubleshooting Matrix
| Observed Symptom / Fault | Root Cause Analysis | Corrective Action & Field Remedy |
|---|---|---|
| Inverter "Low $R_{iso}$" / Ground Fault Alarm | Sheath nicked during pulling; water ingress in connector; pinch under clamp. | Perform sub-string sectional megger testing; replace punctured cable section; replace water-ingress connector with IP68 assembly. |
| Connector Thermal Hotspot ($\Delta T > 15^\circ ext{C}$) | Loose crimp; cross-mated connector brands; unseated pin; corrosion. | Immediately de-energize circuit; cut off affected connector pair; re-strip and install new matched manufacturer connector using calibrated crimp tool. |
| Outer Sheath Longitudinal Cracking | Non-compliant PVC/XLPE installed instead of UV-stabilized XLPO (EN 50618). | Complete replacement of non-compliant cable runs with certified H1Z2Z2-K solar cables. |
| Repeated Fuse Blowing in Combiner Box | Inter-string reverse current; short-circuit between pinched positive and negative cables. | Check polarity; inspect cable bundles for mechanical crushing; replace damaged harness. |
| Rodent / Wildlife Cable Sheath Damage | Direct-buried unarmoured cables in agricultural or desert terrains. | Install stainless steel mesh protective sleeving, rodent-resistant corrugated conduit, or specify steel tape armoured solar power cables. |
| Excessive DC Voltage Drop ($> 3\%$) | Undersized $2.5 ext{ mm}^2$ or $4.0 ext{ mm}^2$ conductor used for long runs; oxidized joints. | Replace long homerun circuits with $6.0 ext{ mm}^2$ or $10.0 ext{ mm}^2$ solar cable; verify connector contact resistance. |
7. Frequently Asked Questions (FAQ)
Q1: Can I use standard THHN, THWN-2, or standard building wire for solar DC string wiring?
No. Standard building wires like THHN/THWN-2 use PVC insulation with nylon jackets, which are not rated for the extreme UV radiation, continuous moisture, and 120°C conductor temperatures experienced on solar arrays. Furthermore, THHN is rigid Class 2 stranding rather than Class 5 flexible tinned copper, making it vulnerable to fatigue failure on tracker systems. Standard building wire should only be used in indoor conduits or inverter control panels.
Q2: What is the main difference between EN 50618 (H1Z2Z2-K) and IEC 62930 (62930 IEC 131)?
Both standards specify dual-layer, electron-beam cross-linked polyolefin (XLPO) halogen-free cables rated at 1500V DC with a 25-year design life at 90°C. EN 50618 is the European harmonized standard, while IEC 62930 is the international benchmark recognized globally across Asia, the Middle East, Latin America, and Africa. Many premium solar cables are dual-certified to both EN 50618 and IEC 62930.
Q3: When should a solar installation upgrade from $4.0 ext{ mm}^2$ to $6.0 ext{ mm}^2$ cable?
While $4.0 ext{ mm}^2$ cable is capable of carrying the current of standard PV strings (12A–15A), $6.0 ext{ mm}^2$ cable is recommended whenever the one-way circuit length exceeds 55 to 65 meters in 1500V systems, or when high-power 182mm/210mm bifacial modules with string currents exceeding 16A–18A are installed. The reduced resistive power loss typically recoups the cable cost difference within 2 to 3 years.
Q4: Why is cross-mating different brands of "MC4-compatible" connectors dangerous?
Even though different brands mechanically snap together, subtle differences in internal pin dimensions, contact plating chemistry, spring tension, and polymer thermal expansion lead to micro-gaps under high DC current. These micro-gaps cause electrical arcing, severe contact resistance ($>5 ext{ m}\Omega$), temperatures over 200°C, and localized fire ignition. Always use authentic matched connector pairs from the same manufacturer.
Q5: Is direct burial permitted for standard solar PV cables?
Under European EN 50618 and international IEC 62930, direct burial is only permitted if the cable has successfully passed the optional water resistance and direct burial crush tests specified in Annex E. In North America, UL 4703 cables must be explicitly marked "DIR BUR" (Direct Burial). For heavy industrial or rocky soils, routing in UV-resistant conduits or specifying metal-armoured solar cables is strongly advised.
Q6: How do single-axis trackers affect solar cable lifespan?
Single-axis trackers rotate up to ±60° daily, subjecting cables to continuous torsional flexure, thermal cycling, and potential metal edge chafing. To ensure a 30-year lifetime, installers must maintain generous expansion loops (minimum bend radius $\ge 8 imes ext{OD}$), utilize EPDM rubber edge grommets, and fasten cables exclusively with UV-resistant PA12 ties or rounded stainless steel clips.
Q7: What are the consequences of over-torquing or under-torquing MC4 cable glands?
Under-torquing (below 2.5 N·m) fails to compress the internal sealing ring sufficiently, allowing rainwater and humidity to enter the connector body and cause ground faults ($R_{iso}$ drop) and corrosion. Over-torquing (above 3.5 N·m) crushes the cable jacket, damages internal insulation, and strips the connector plastic threads. Always use calibrated assembly spanners.
Q8: What insulation resistance value indicates a healthy 1500V DC solar string?
Under dry field conditions per IEC 62446-1, a healthy DC string should yield an insulation resistance of $\ge 50 ext{ M}\Omega\cdot ext{km}$, with individual field string readings typically measuring in hundreds of megaohms ($>100 ext{ M}\Omega$). Any reading below $1.0 ext{ M}\Omega$ indicates moisture penetration, severe mechanical sheath damage, or unseated connectors requiring immediate remediation.
8. Summary & Technical References
Proper installation, precise engineering calculations, and rigorous testing of solar PV DC cabling safeguard energy production and asset integrity throughout a 25- to 30-year plant lifecycle. By adhering to EN 50618 and IEC 62930 specifications, enforcing matched connector crimping protocols, and conducting structured commissioning insulation testing, EPCs and asset owners ensure maximum system uptime and bankable solar performance.
Applicable Technical Standards
- EN 50618: Electric cables for photovoltaic systems (BT(DE/NOT)258), Type H1Z2Z2-K
- IEC 62930: Electric cables for photovoltaic systems with a voltage rating of 1,5 kV DC
- UL 4703: Standard for Photovoltaic Wire
- IEC 60228: Conductors of insulated cables (Class 5 flexible)
- IEC 62446-1: Photovoltaic (PV) systems – Requirements for testing, documentation and maintenance
- IEC 62852: Connectors for DC-application in photovoltaic systems
- IEC 60364-7-712: Requirements for special installations or locations – Solar photovoltaic (PV) power supply systems
- NEC Article 690 & 705: Solar Photovoltaic Systems & Interconnected Electric Power Production Sources
