ABC Overhead Insulated Cable

Characteristics 1.rated voltage U0/U 0.6/1KV 2.Max. Admissible long-time operating temperature to conductor:PVC or PE insulation should not exceed 70℃ XLPE insulation should not exceed 90℃. 3.Installing temperature should not be below -20℃。 4.Admissible bending radius to cable :when overall-diameter(D)is less than 25mm,it should be not less than 4D,when overall-diameter (D) is 25mm or more,it should be not less than 6D. Application: Primarily used for overhead service applications such a

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:AWG aerial bundle cable
  • +86-371-65341360
  • sale@sitongcable.com
  • 0086 15138668963
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:Duplex Service Drop
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:AAC /ACSR/ XLPE/ PE
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum conductor/ Steel core aluminum strand

    Overview

    Characteristics

    1.rated voltage U0/U 0.6/1KV

    2.Max. Admissible long-time operating temperature to conductor:PVC or PE insulation should not exceed 70℃ XLPE insulation should not exceed 90℃.

    3.Installing temperature should not be below -20℃。

    4.Admissible bending radius to cable :when overall-diameter(D)is less than 25mm,it should be not less than 4D,when overall-diameter (D) is 25mm or more,it should be not less than 6D.

    Application:

    Primarily used for overhead service applications such as street lighting,outdoor lighting ,and temporary service for construction.To be used at voltage of 600V phase -to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductor or 90℃ for crossliked polyethylene(XLPE) insulated conductors.

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.

    Product Photo

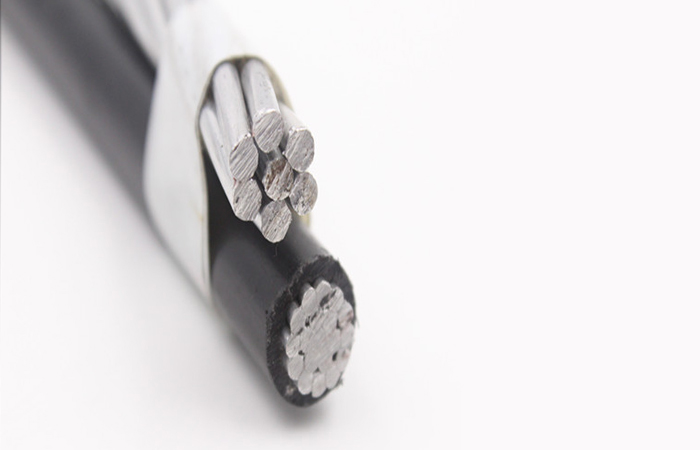

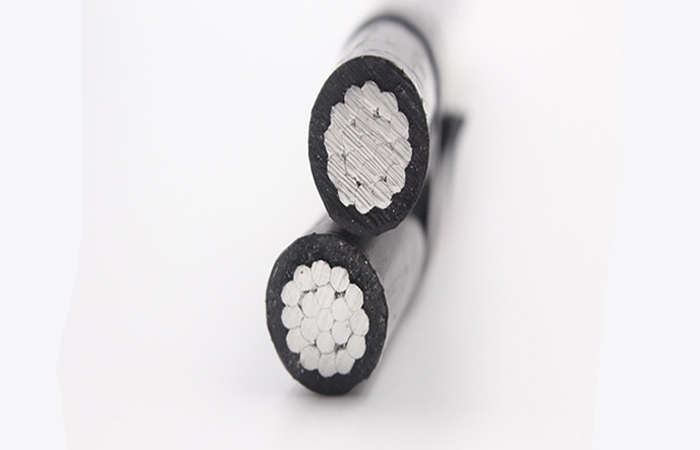

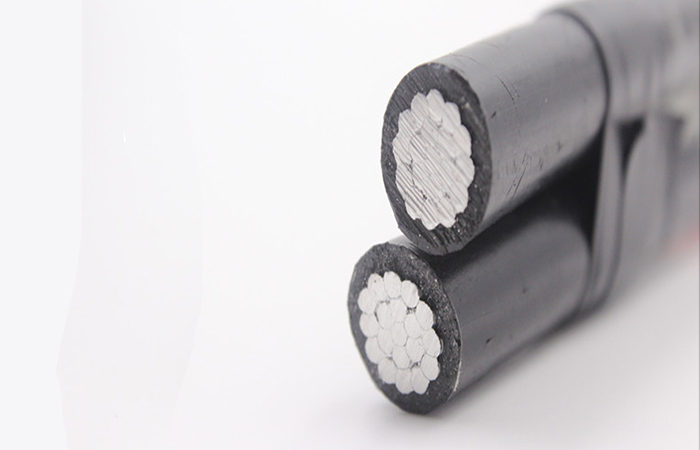

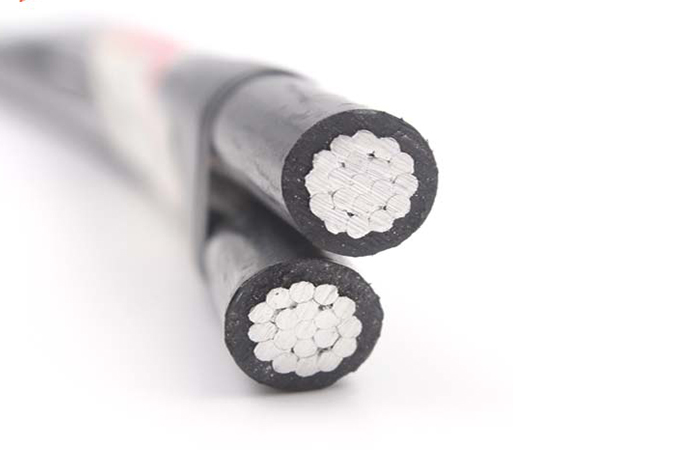

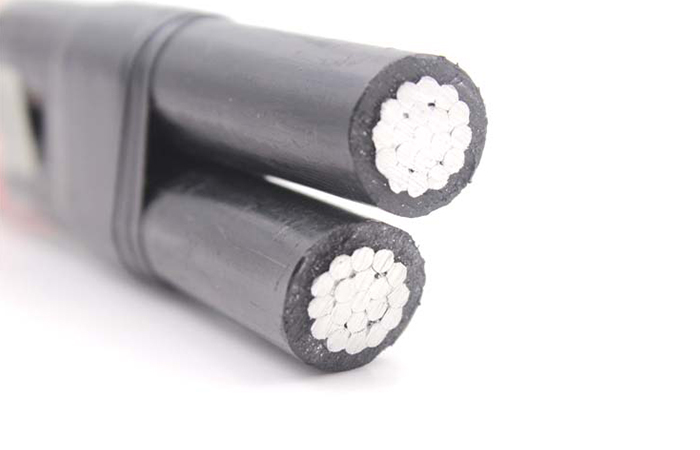

    ABC Overhead Insulated Cable

    ABC Overhead Insulated Cable

    ABC Overhead Insulated Cable

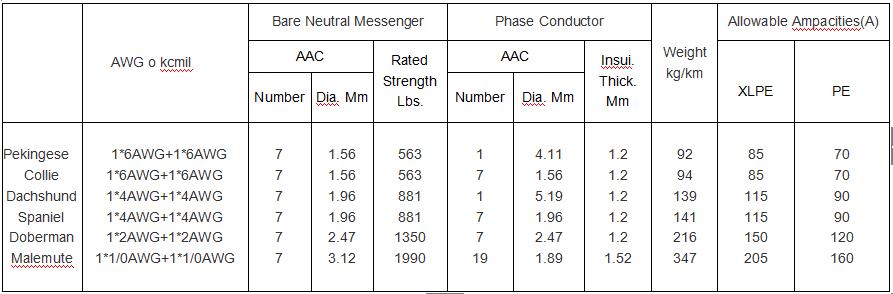

  • ABC Overhead Insulated Cable parameter

  • Process

    Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

    Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

    We have ZERO tolerate for flaw products,quality you can trust.

    Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

    Third-party inspection is welcomed,we are happy to cooperate.

    RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
