Anti-corrosion Type Aluminum Conductor Steel Reinforced

With the anti-corrosion steel reinforcement painted on the original surface of the ACSR, the corrosion resistance of corrosion-resistant ACSR Conductor has improved.

Supply Ability:5000 Kilometer/Kilometers per Month
Transport: Shipping
Parameter:IEC A1S1A, IEC A1S1B, IEC A1S2A, IEC A1S2B, IEC A1S3A

+86-371-65341360
sale@sitongcable.com
0086 15138668963

Quick Details

Place of Origin:China henan

Brand Name:Sitong

Model Number: Steel Conductor

MOQ:1kilometer

Certificate:ISO9001

Voltage:Low Voltage

Application:Overhead conductor

Standard:BS IEC ASTM DIN

Material:steel

Package:Standard Wooden Drum

Port:Qingdao ,/Shanghai / Tianjin

Conductor Matel:steel

Overview

Application

With the anti-corrosion steel reinforcement painted on the original surface of the ACSR, the corrosion resistance of corrosion-resistant ACSR Conductor has improved. The product is used in areas with bad weather conditions. It can be used in corrosive areas such as coastal areas or industrial areas. This ACSR is filled with an anti-corrosive grease, applied to the openings in the middle of the braided cables and the external surface.

a) Conductor greased only in its steel core

b) Oiling the core and inner layer of conductor wires

c) Complete lubrication of the driver

d) Oiling the conductor, except the outer surface of the outer layer of wires

Standard

IEC A1S1A, IEC A1S1B, IEC A1S2A, IEC A1S2B, IEC A1S3A

Aluminum conductors with steel reinforcement IEC 61089

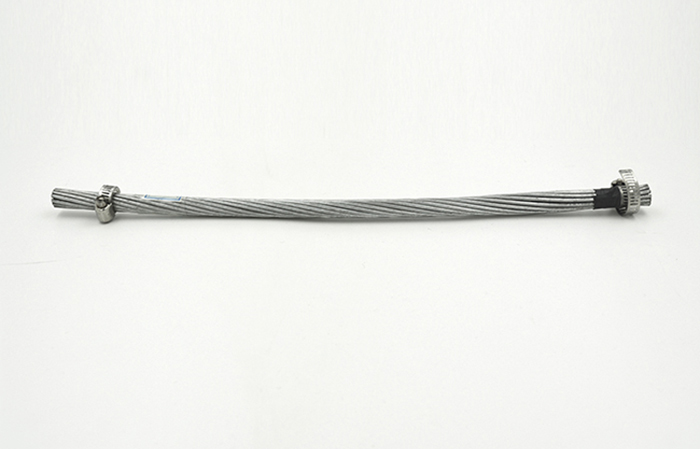

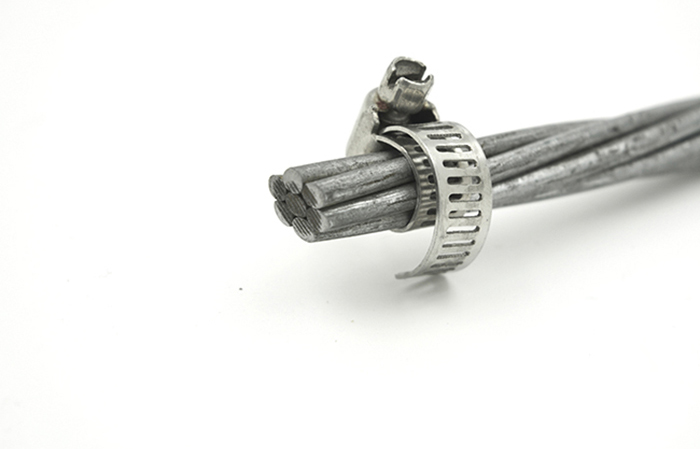

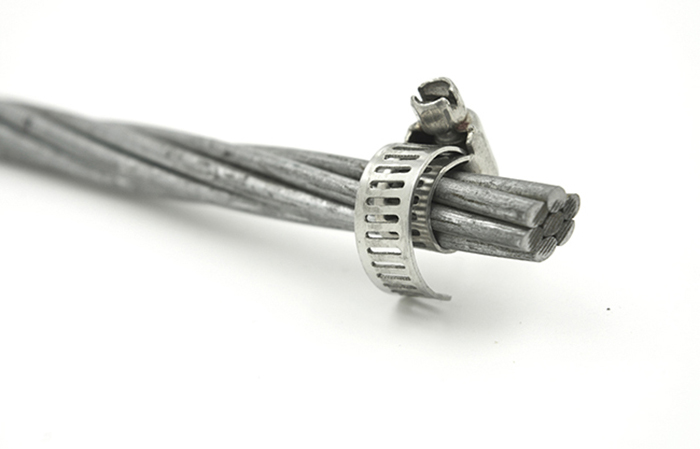

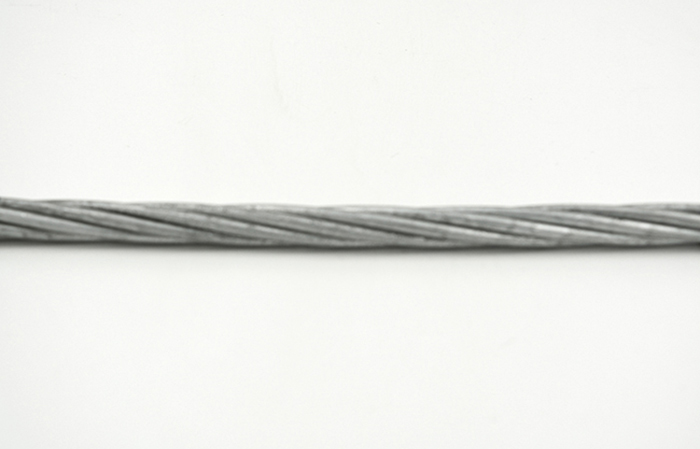

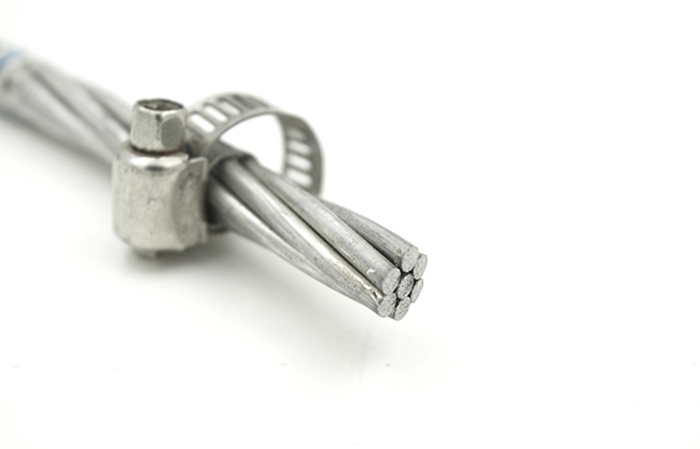

Product Photo
Process

Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

We have ZERO tolerate for flaw products,quality you can trust.

Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

Third-party inspection is welcomed,we are happy to cooperate.

RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

Package

Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

Outer surface of reel/drum is reinforced with steel strip for additional strength.

Our package measures are more than solid for overseas shipping.

Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
