Low voltage abc cable

Application The aerial bundled cables(ABC cable) designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl. Standard BS 7870-5:1999 NFC 33-209 IEC 60502 AS/NZS 3560.1 Construction Conductor (for either phase, neutral or street lighting) The conductors shall be of aluminium 1350 wires and are compact

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:low Voltage0.6-- 1kv
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:abc cable 2core 3core Quadruplex-phase cable
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:XLPE insulation
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum conductor/ Steel core aluminum strand

    Overview

    Application

    The aerial bundled cables(ABC cable) designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.

    Standard

    BS 7870-5:1999

    NFC 33-209

    IEC 60502

    AS/NZS 3560.1

    Construction

    Conductor (for either phase, neutral or street lighting)

    The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).

    Insulation

    XLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth.

    Assembly

    2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.

    Duplex Service Drop:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.

    Triplex Service Drop:To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation.

    Quadruplex Service Drop: Used to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors

    As you know there are so many cable manufactures, ZHENGZHOU SITONG CABLE CO., LTD is one of the biggest manufactures in china-mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.

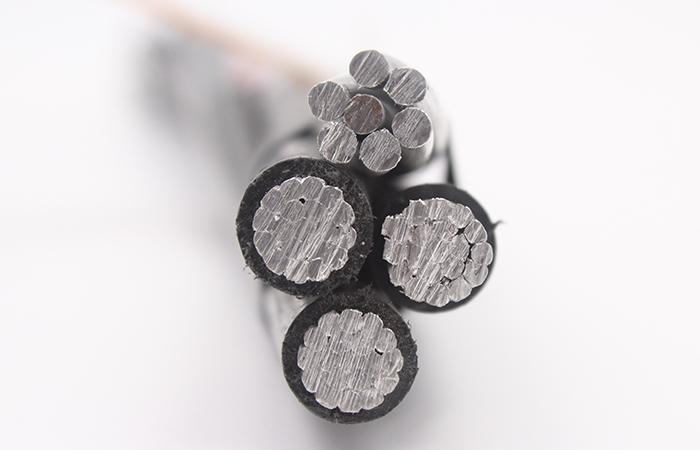

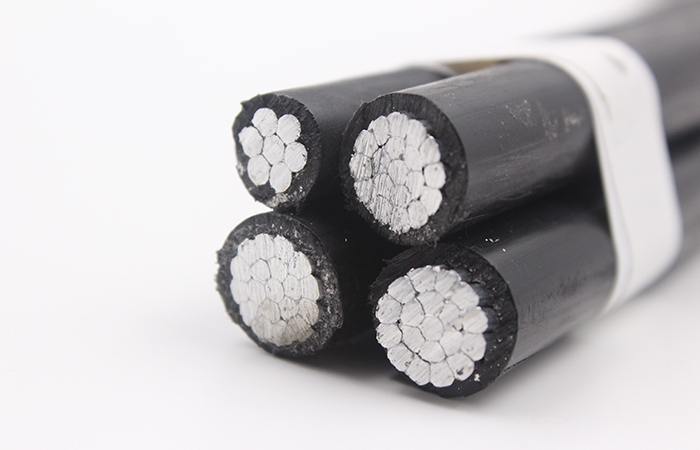

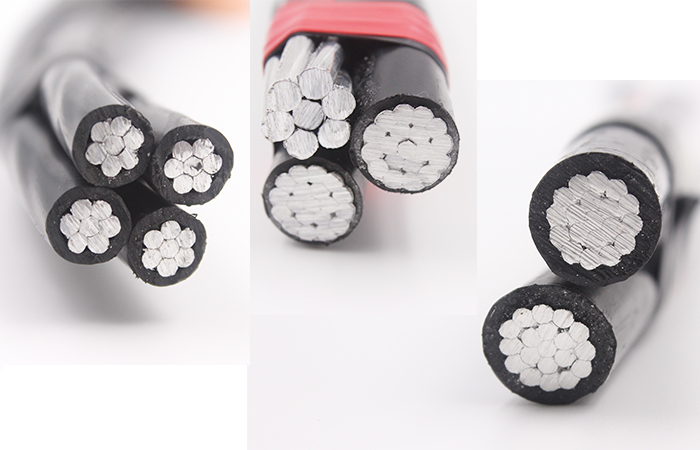

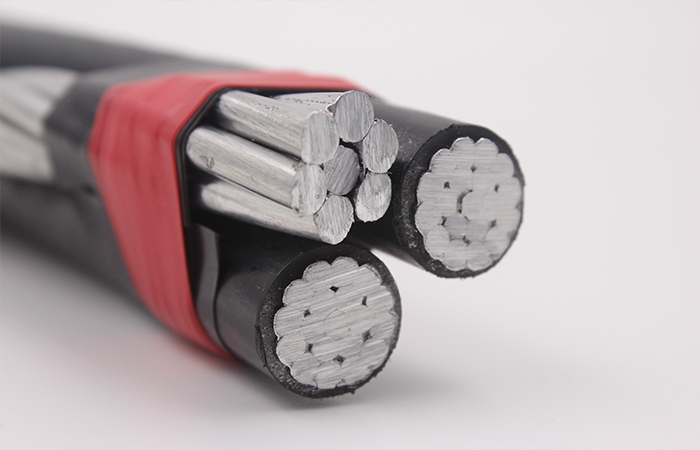

    Product Photo

    Low voltage abc cable

    Low voltage abc cable

    Low voltage abc cable

  • Low voltage abc cable parameter

  • Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength.

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
