Aluminum conductor concentric cable

Applications USed in service entrance replacing low voltage bundled cables ,Also suiteable for sub mai distribution and particularly used within high-rise building and street lighting systems.These cables offer high resistance to aging,abrasion,moisture,chemicals,oils and acids and afford protection of phase conductors againest external ingress Concentric cables it covers circular and flat,single twin, three or four XLPE insulated conductors with a concentric conductor over assembly of cores rat

Supply Ability:5000 Kilometer/Kilometers per Month
Transport: Shipping
Parameter:aluminum conductor concentric cable

+86-371-65341360
sale@sitongcable.com
0086 15138668963

Quick Details

Place of Origin:China henan

Brand Name:Sitong

Model Number:Concentric cable

MOQ:1kilometer

Certificate:ISO9001

Voltage:Low Voltage

Application:Overhead

Standard:BS IEC ASTM DIN

Material:XLPE insulation

Package:Standard Wooden Drum

Port:Qingdao ,/Shanghai / Tianjin

Conductor Matel: Aluminum conductor

Overview

Applications

USed in service entrance replacing low voltage bundled cables ,Also suiteable for sub mai distribution and particularly used within high-rise building and street lighting systems.These cables offer high resistance to aging,abrasion,moisture,chemicals,oils and acids and afford protection of phase conductors againest external ingress

Concentric cables it covers circular and flat,single twin, three or four XLPE insulated conductors with a concentric conductor over assembly of cores rated 0.6/1KV, for use in aerial, direct burial,conduit,open tray and underground duct installation.It’s maximum temperature of operation is 70℃( PVC or PE insulation) or 90℃ (XLPE insulation) and it’s voltage of service for all the applications is 600V.

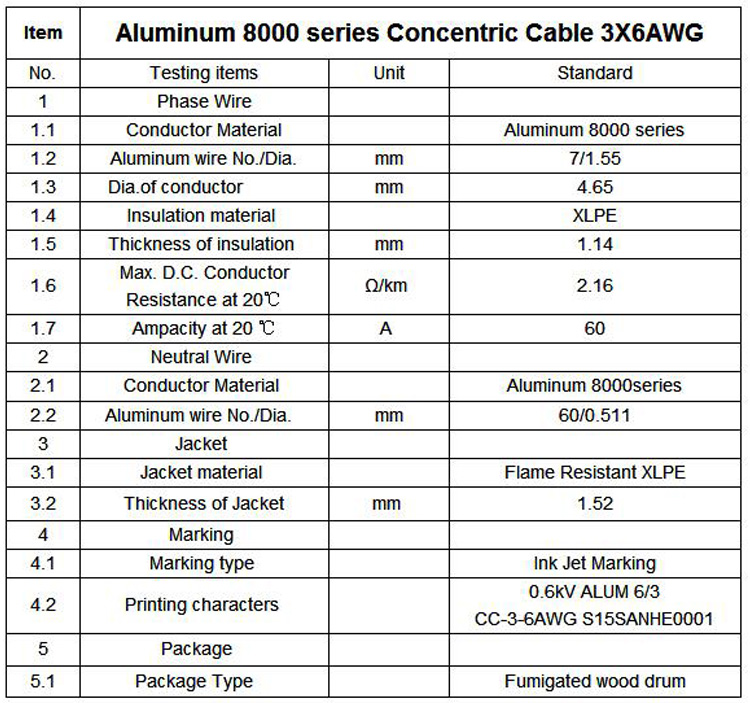

Specification

1. Conductor : Copper or Aluminum or 8000 series Aluminum Alloy

2. Insulation: PVC or PE or XLPE

3. Concentric neutral: Copper or Aluminum or 8000 series Aluminum Alloy

4. Sheath: PVC or PE or XLPE

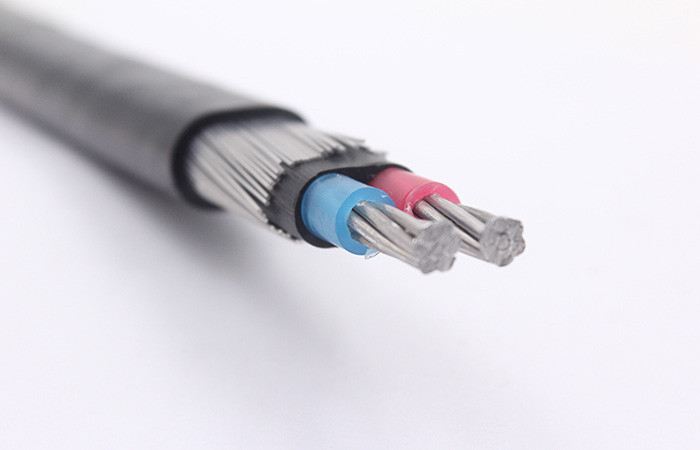

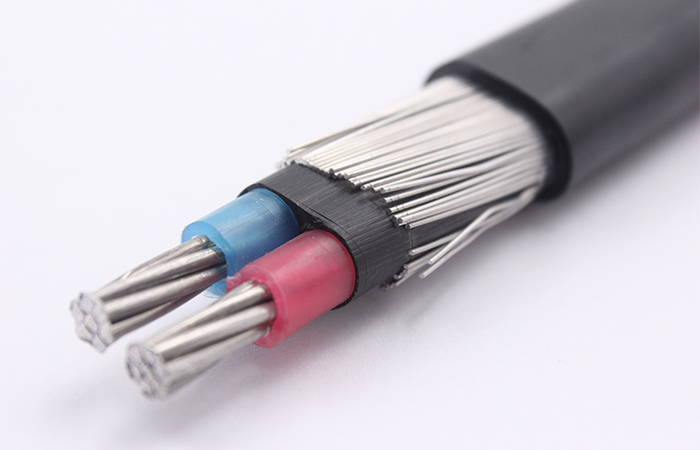

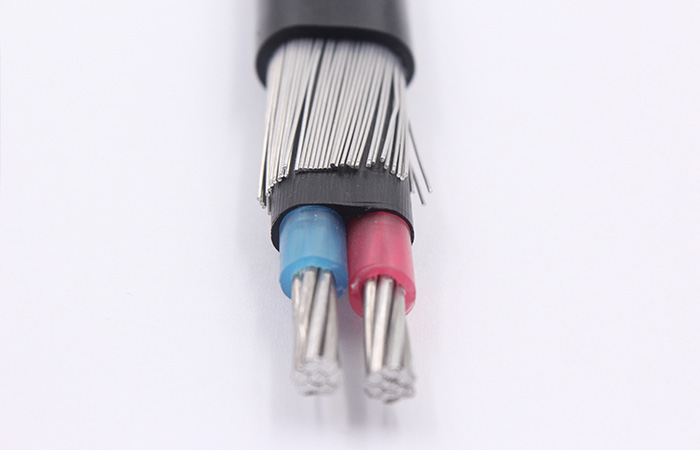

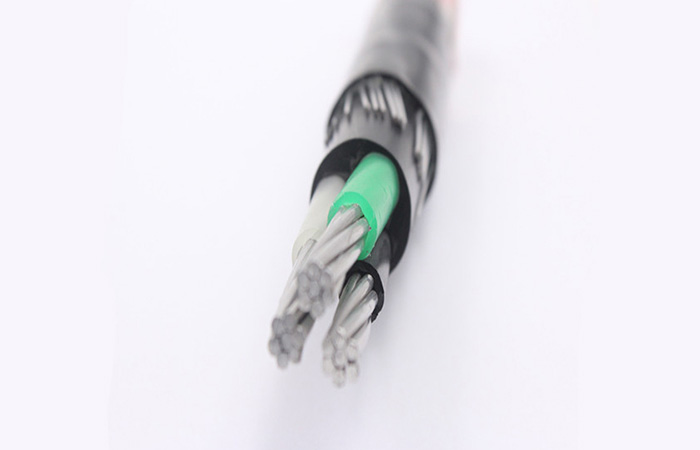

Product Photo
Process

Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

We have ZERO tolerate for flaw products,quality you can trust.

Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

Third-party inspection is welcomed,we are happy to cooperate.

RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

Package

Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

Outer surface of reel/drum is reinforced with steel strip for additional strength

Our package measures are more than solid for overseas shipping.

Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
