overhead conductor aluminum conductor steel reinforced acsr conductor BS EN 50182:2001 Tiger

1.Product Description ACSR (Aluminum Conductor Steel Reinforced) Cable consisting of galvanized steel core, which surrounded by concentric layers of aluminum wire, and grease if necessary. 2.Application ACSR, AAC, AAAC,ASCSRACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying acro

  • Supply Ability:15000 Kilometer/Kilometers per Month1
  • Transport: Shipping
  • Parameter:BS EN 50182:2001 Tiger
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:Aluminum Conductor Steel Reinforced
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:High Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:Aluminum Conductor Steel Reinforced
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum conductor

    Overview

    1.Product Description

    ACSR (Aluminum Conductor Steel Reinforced) Cable consisting of galvanized steel core, which surrounded by concentric layers of aluminum wire, and grease if necessary.

    2.Application

    ACSR, AAC, AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys etc aerial line.

    3.Standard

    IEC61089, BS215, ASTMB232, CSA C49, DIN48204, JIS C3110, and customers’ special Specifications


    Production Name overhead  conductor aluminum conductor steel reinforced acsr
    conductor BS EN 50182:2001 Tiger
    Code Name Tiger
    Nominal Aera (mm2 ) 161.9
    Stranding&Wire Diameter (No.mm) 37
    Aluminum (No.mm) 30/2.36
    Steel (No.mm) 7/2.36
    Approximate Overall Diameter (mm) 16.52
    Approximate weight (Kg/km) 602.7
    Breaking Load (kN) 57.87
    DC Resistance zt 20℃ (Ω/km) 0.2202
    Currant rating (A) 323
    Sectional Aera (mm2) 161.9
    Aluminium (mm2 ) 131.2
    Steel (mm2) 30.6
    Total (mm2) 161.9

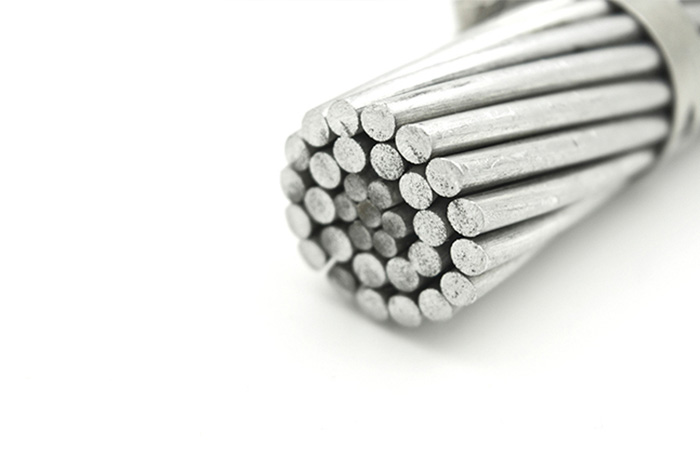

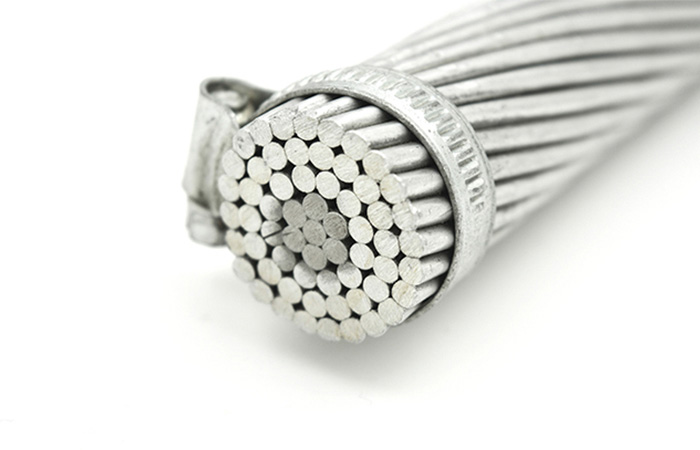

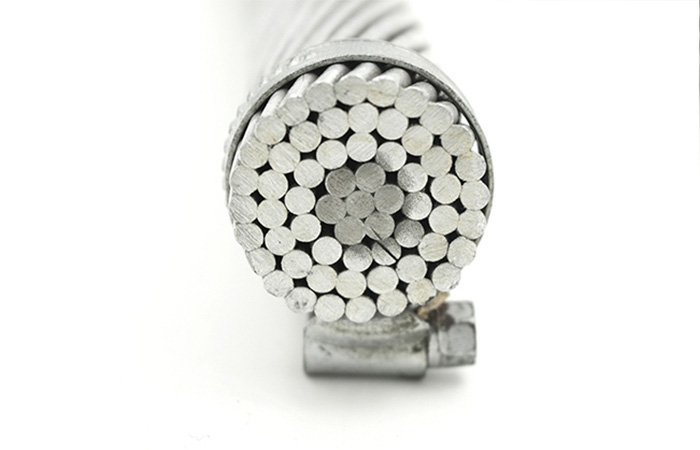

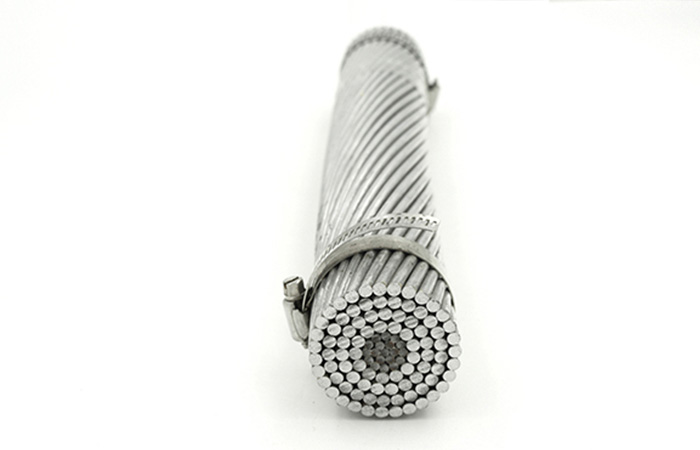

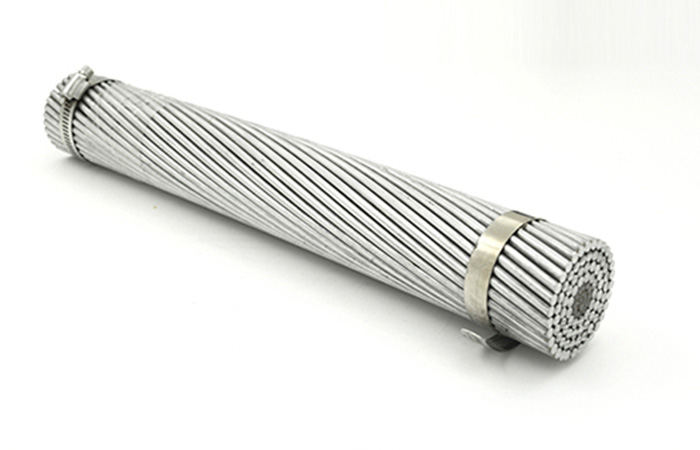

    Product Photo

    overhead conductor aluminum conductor steel reinforced acsr  conductor BS EN 50182:2001 Tiger

    overhead conductor aluminum conductor steel reinforced acsr  conductor BS EN 50182:2001 Tiger

    overhead conductor aluminum conductor steel reinforced acsr  conductor BS EN 50182:2001 Tiger

  • overhead conductor aluminum conductor steel reinforced acsr  conductor BS EN 50182:2001 Tiger parameter

  • Different package for customer choose !

    For the Overhead conductor,we usually use the standard wooden drum to package as the belowing picture.We can design the different package types according to the customer's requirements.
