Introduction:

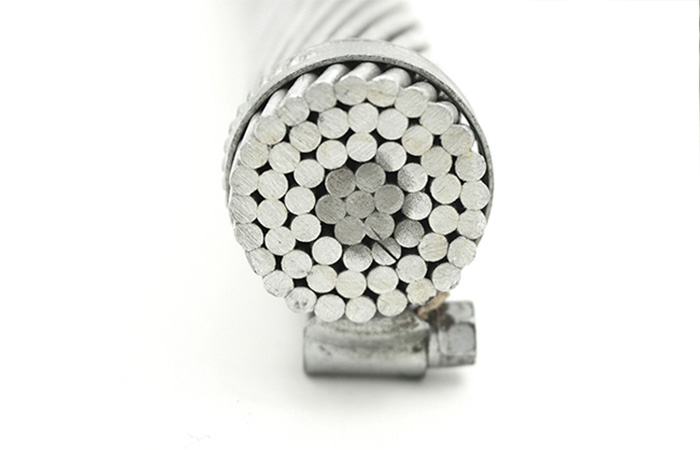

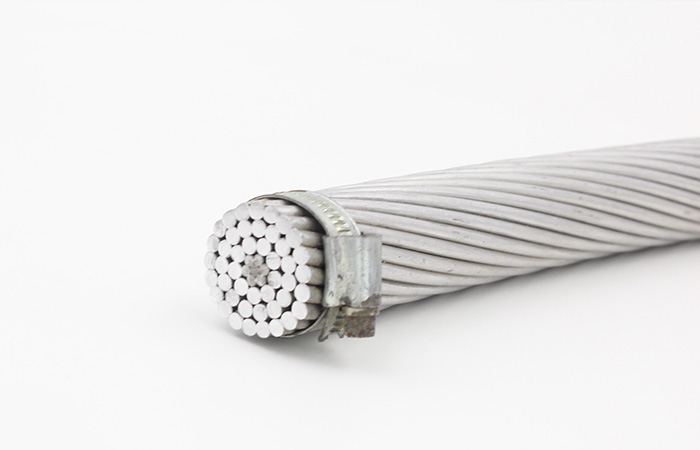

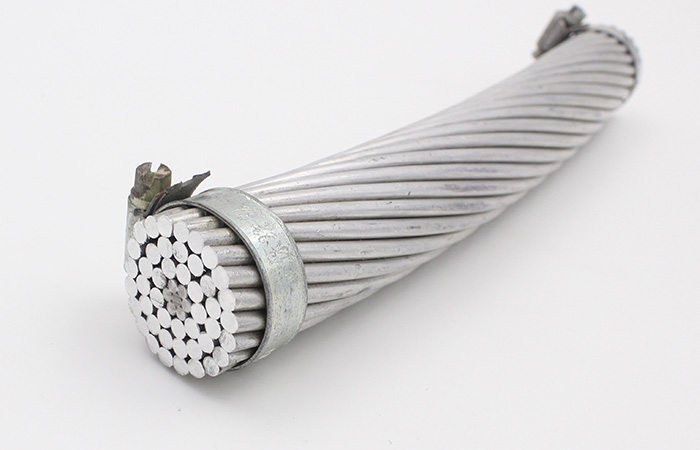

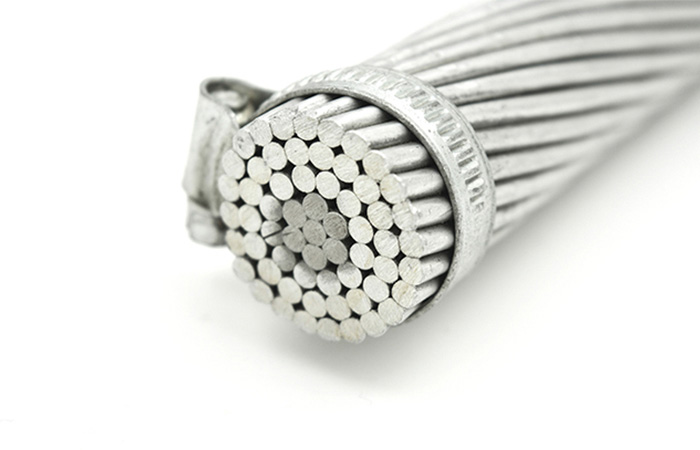

These conductors are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The wire or wires which form the core are made of galvanized steel and the external layer or layers are of aluminum. Normally these conductors have a Galvanized steel core of 1, 7, 19 or 37 wires, surrounded by concentric layers of aluminum wires. The diameters of the steel and aluminum wires can be alike or different. By varying the relative proportions of aluminum and steel ratios, the ideal conductor can be produced for any particular application. In this way , if a high tensile strength conductor is required, the number of steel wires can be increased until the required strength is reached . When a conductor with high current carrying capacity and a comparatively low strength is required, this is attained with high aluminum content.

Application:

In comparison with copper, these conductors have considerable technical and economical advantages in the installation of overhead lines. Its characteristics, and low weight, combined with its high breaking strength, are gathered which makes it possible to have large span runs, without having to revert to excessive mechanical stresses or to heavy metallic Towers. Due to the greater diameter of the conductors, electric losses by the corona Effect are greatly reduced. By making use of these properties economical electric energy transmission is attained at very high voltages and distances. 1. high tensile strength, allowing larger spans runs. 2. better sag properties, allowing longer span lengths. 3. economic design. 4. best suited for transmission lines with long spans.

ACSR conductors application:

Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. ACSR Conductor are used extensively for overhead ground wires, river crossings etc. These ACSR Conductors are available with us in various types for meeting the exact requirements of the clients.
