ABC CABLE(Quadruplex Service Drop)

Overhead insulated cable may be installed in the streets with dense trees close to the buildings,site of urban construction and lead to transformer.Using this cable,it is unnecessary to prune the branches,so that reduce the across and parallel distance of the cable.It is convenient to install and high mobility.It can reduce accidents of electric shock and power failure causing by circuit troubles.To guarantee supplying of electric power for industry production and residents safety.It is especial

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:Quadruplex Service Drop
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:Quadruplex Service Drop
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:XLPE insulation
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum conductor/ Steel core aluminum strand

    Overview

    Overhead insulated cable may be installed in the streets with dense trees close to the buildings,site of urban construction and lead to transformer.Using this cable,it is unnecessary to prune the branches,so that reduce the across and parallel distance of the cable.It is convenient to install and high mobility.It can reduce accidents of electric shock and power failure causing by circuit troubles.To guarantee supplying of electric power for industry production and resident’s safety.It is especialy suitable for an old city,which has densely buildings,densely population and narrow streets.

    Our overhead insulated cable have formed a system ,such as single core,two-core,three-core and four-core.There are conductors of aluminum,copper or aluminum conductors steel-reinforced.We can manufacture the overhead insulated cable not only in accordance with China’s standard GB12557-90 but also the other standards and special requirement by the customers.

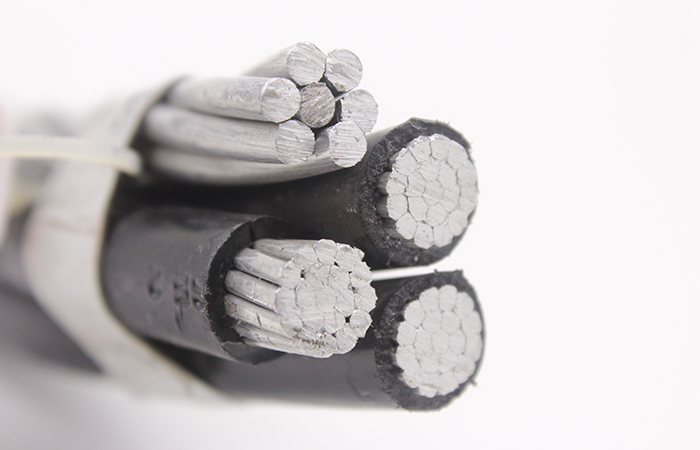

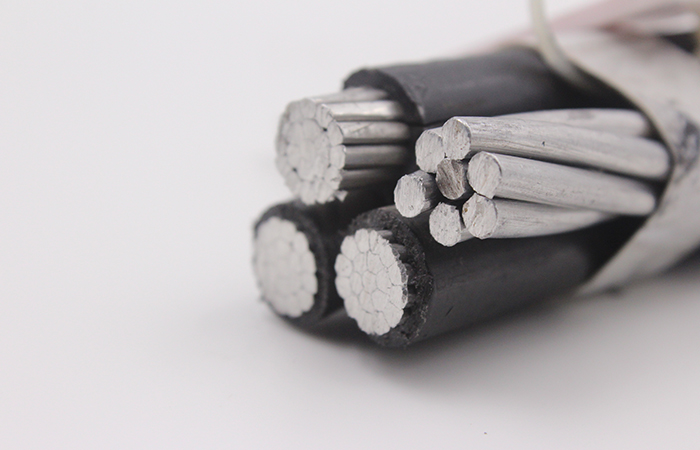

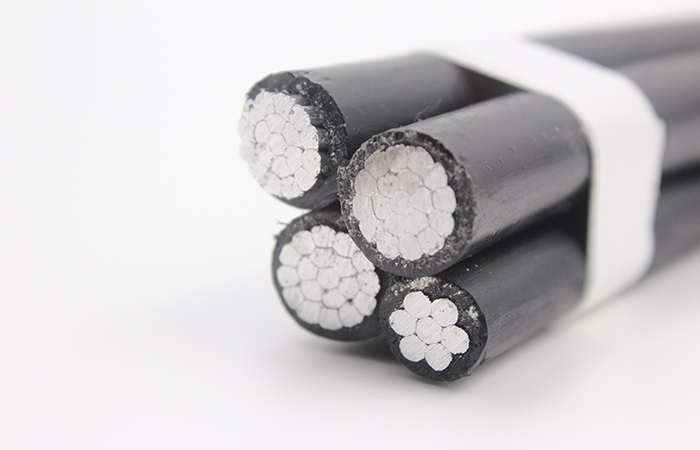

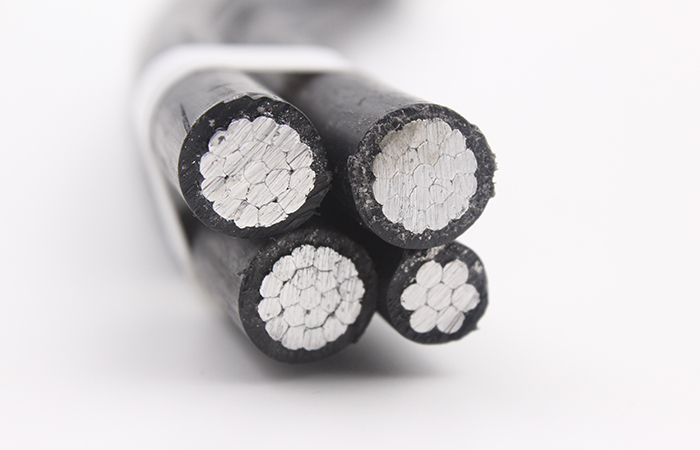

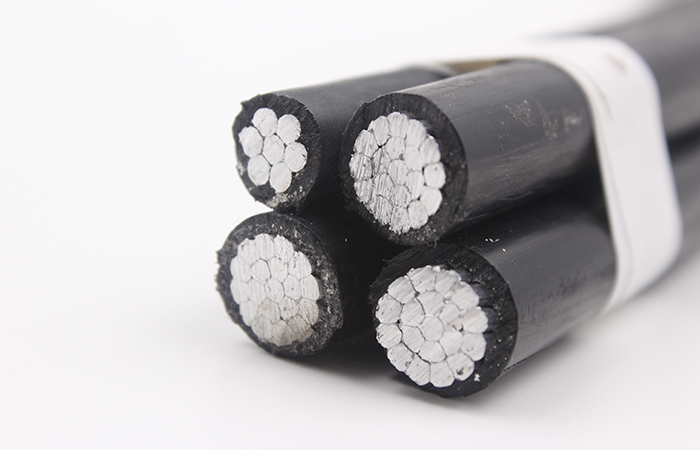

    Product Photo

    ABC CABLE(Quadruplex Service Drop)

    ABC CABLE(Quadruplex Service Drop)

    ABC CABLE(Quadruplex Service Drop)

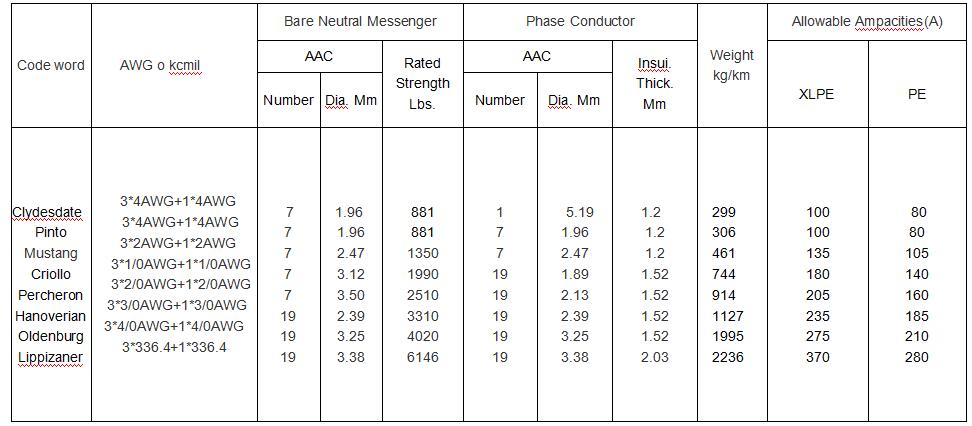

  • ABC CABLE(Quadruplex Service Drop) parameter

  • Packing Details:

    For the Low Volatge Aluminum Wire Conductor Underground Cable ,we usually use the standard wooden drum to package with this belowing picture.We  also can design different and various package types according to the customer's  special requirements.

     All cables will be packed in rool or different sizes wooden reels according to their outside diameter and net weight.

    1. We use fumigated & treated timber wooden reel to package cables.

    2.Frequently-used reel sizes: 0.7*0.7*0.7m, 1.1*1.1*0.8m, 1.8*1.8*1.1m, 2.2*2.2*1.8m, or as customer's reauests

    3. Wooden plate sealed.

    4. 72 pcs of 0.7m wooden reel can be put in one 20FCL.

    28 pcs of 1.1m wooden reel can be put in one 20FCL.

    6 pcs of 1.8m wooden reel can be put in one 20FCL.
