Quick Details
- Place of Origin:China henan
- Brand Name:Sitong
- Model Number:electric wire
- MOQ:1kilometer
- Certificate:ISO9001
- Voltage:Low Voltage
- Application:house lighting heating
- Standard:BS IEC ASTM DIN
- Material:PVC insulated electric wire
- Package:Standard Wooden Drum
- Port:Qingdao ,/Shanghai / Tianjin
- Conductor Matel:copper
Overview
PVC insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life ,easy to install,operate and maintain,etc
The product of cable wire electrical 2.5mm 4mm copper cable mainly suitable for laying at the fixed places, It is widely used as connectors of drive,lighting ,electronic equipments ,Instrument and telecommunication equipments with rated voltage 450/750v or below , Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.
Standards
| Nominal section.(mm2) | conductor No./Dia (mm) | Insulated thick (mm) | Max.overall Dia. (mm) | Conductor resistance at 20'C | Weight (kg/km) | ||
|---|---|---|---|---|---|---|---|
| copper | aluminum | copper | aluminum | ||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 19.2 | ||
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 1808.0 | 668.0 |
Our Company
Zhengzhou Sitong Cable Co.Ltd. is founded by one of the most professional manufacturers.We specialize in producing and exporting all kinds of wires and cables.We have advanced tech-staff, advanced equipment and 30year's experience engineer.Welcome to visit at any time. Since we were founded, we have been built favorable business relationship with many customers from all over the world. Our main products include PVC insulated cable&wire ,0.6/1-26/35kv XLPE insulated power cables,Control cables,Overhead insulated cables,General rubber sheath flexible cable,Rubber sheath flexible cable for mining,welding cables,Aerial Bundle Cable(ABC Cable),Service Drop(Single,duplex,triplex,quadruplex),AAC,ACSR,AAAC,Polyester enameled round copper wrie,Guy wire,Flame Retardant Cable,Fire Retardant Cable,Smoke halogen-free cable,etc.In addition,we have the capacity to design and produce all kinds of wires and cables according to your special requirements. Our factory could produce the wires and cables according to many standards including GB,IEC,ASTM,DIN,JIS,NF,IS,AS/NES and so on.We will do our best to meet your requirements. We comply with the principle - “honest management,practical and pioneering spirit ,pursuit of excellence”.We are willing to collaborate with our friends all over the world and build brilliant future with the perfect quality of products and service.

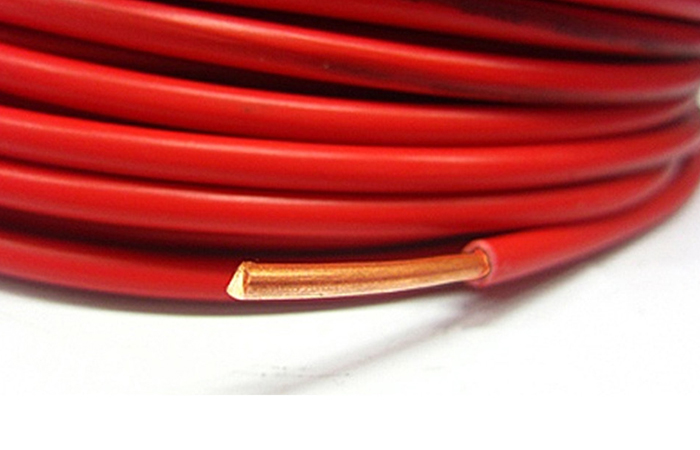

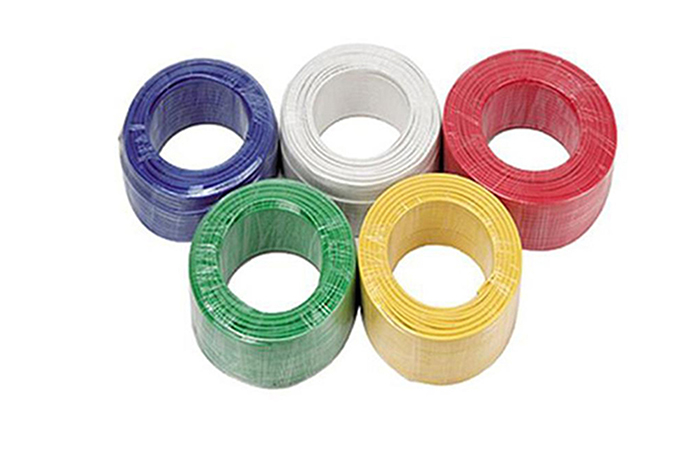

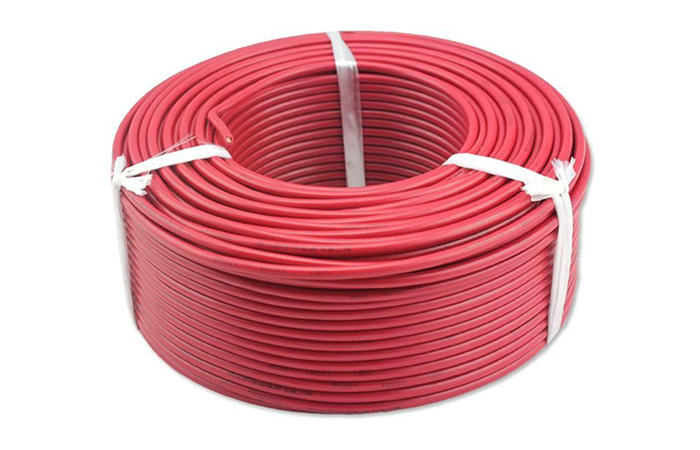

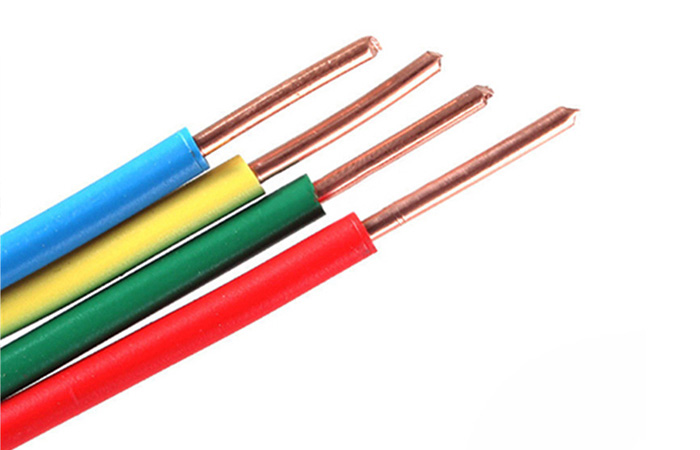

Product Photo
