overhead AAAC conductor All Aluminum Alloy conductor power cable

They are used mostly as bare aerial conductors for primary and secondary energy distribution. They are manufactured with high strength aluminum alloy to achieve a high weight-resistance ratio, as well as good bending capacity.

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:15.5mm2 Conductor
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:AAAC
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:Bare conductor
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum

    Overview

    Applications

    They are used mostly as bare aerial conductors for primary and secondary energy distribution. They are manufactured with high strength aluminum alloy to achieve a high weight-resistance ratio, as well as good bending capacity.

    (1) AAAC conductors are widely used in overhead distribution lines and transmission lines near coasts where corrosion is a constant problem.

    (2) Aluminum alloy conductors are used as substitutes for single-layer ACSR conductors to reduce energy loss in the distribution and transmission lines. They can save the production cost of 5-8%.

    (3) They have a greater resistance, but also a lower conductivity than the aluminum conductor, which is also lighter. Consequently they are a good replacement for conventional ACSR cables.

    Characteristics

    Aluminum alloy conductors have a number of advantages over ACSR or AAC cables (aluminum conductors).

    They operate with a lower energy loss than the ACSR conductors (They avoid the inductive effect of the steel core of the ACSR cables).

    ■The required accessories are simpler than for ACSR conductors.

    ■Corrosion resistance in conductive environments is better in ACSR cables.

    ■The force and bending are approximately the same as that of ACSR conductors 6/1 and 26/7.

    ■The external diameters are the same as for the ACSR conductors, which makes the exchange of accessories possible.

    ■Higher resistance to abrasion than that of 1350 aluminum cables and ACSR conductors.

    ■Breakdown voltage higher than that of AAC conductors.

    ■Higher conductivity than ACSR conductors.

    Standard

    ASTM B399, BS EN50183, BS3242, DIN48201, IEC61089

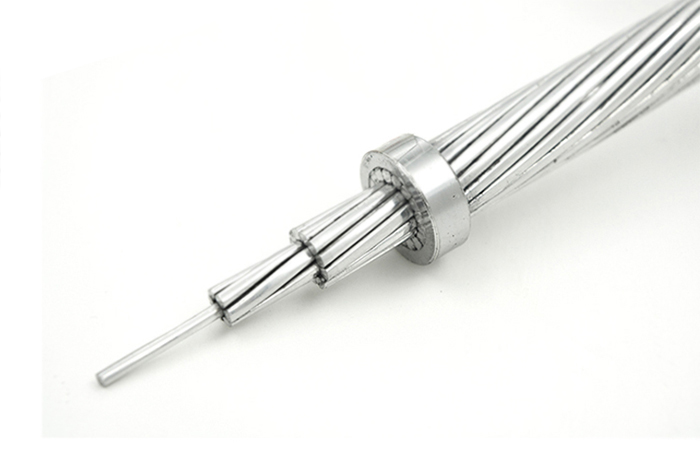

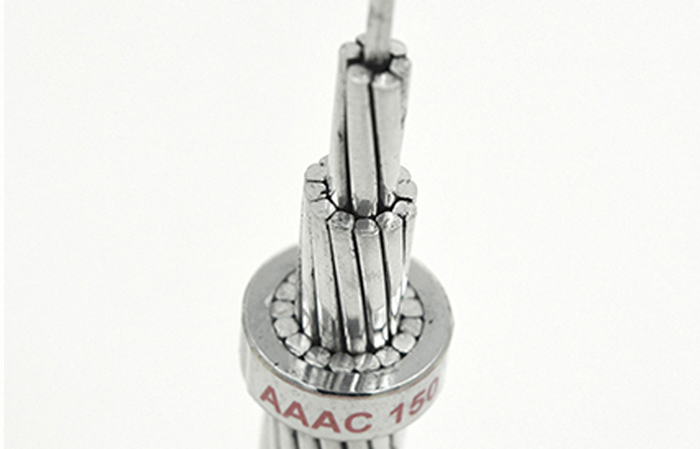

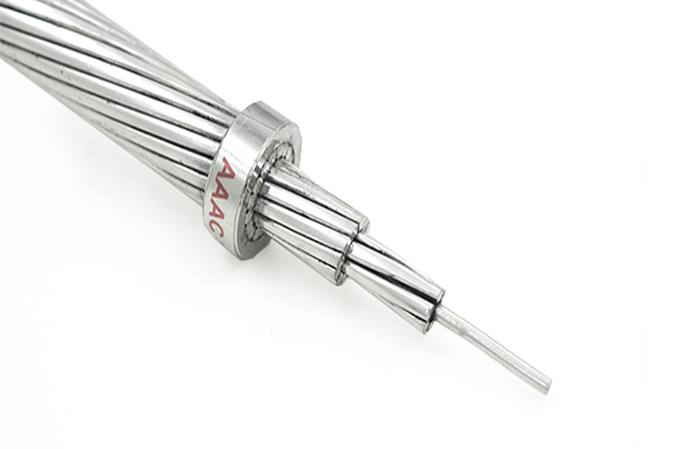

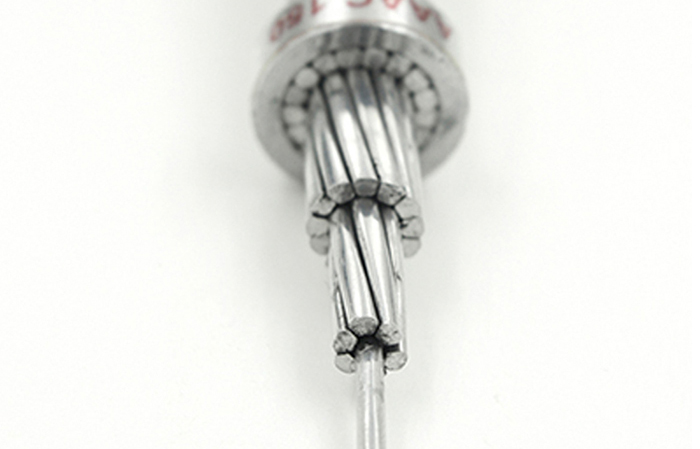

    Product Photo

    overhead AAAC conductor All Aluminum Alloy conductor power cable

    overhead AAAC conductor All Aluminum Alloy conductor power cable

    overhead AAAC conductor All Aluminum Alloy conductor power cable

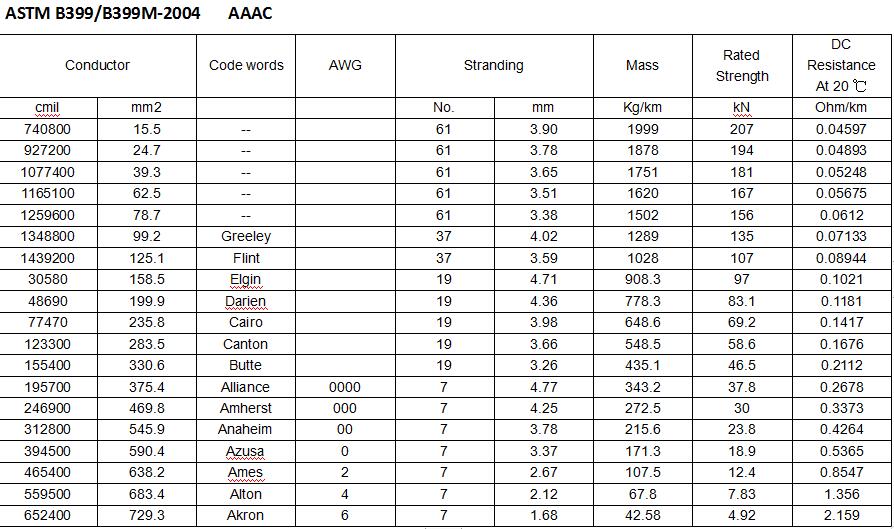

  • overhead AAAC conductor All Aluminum Alloy conductor power cable parameter

  • Process

    Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

    Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

    We have ZERO tolerate for flaw products,quality you can trust.

    Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

    Third-party inspection is welcomed,we are happy to cooperate.

    RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength.

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
