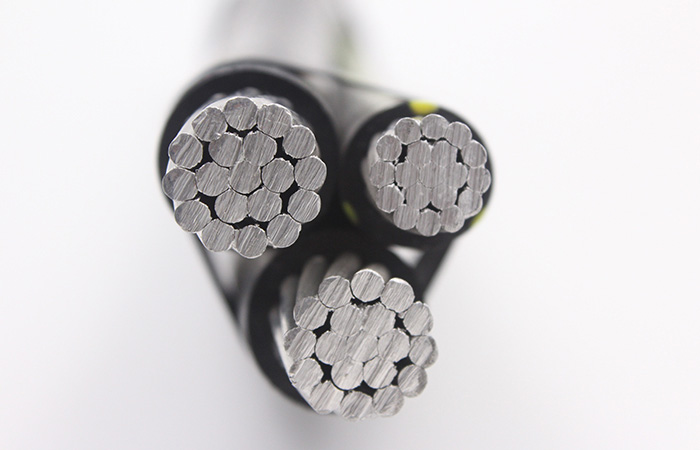

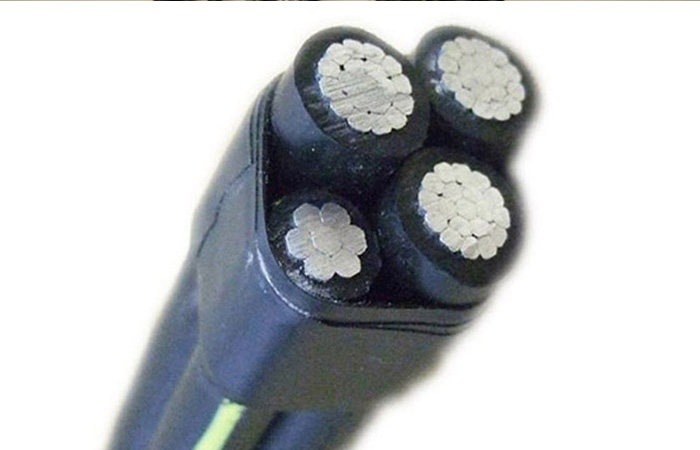

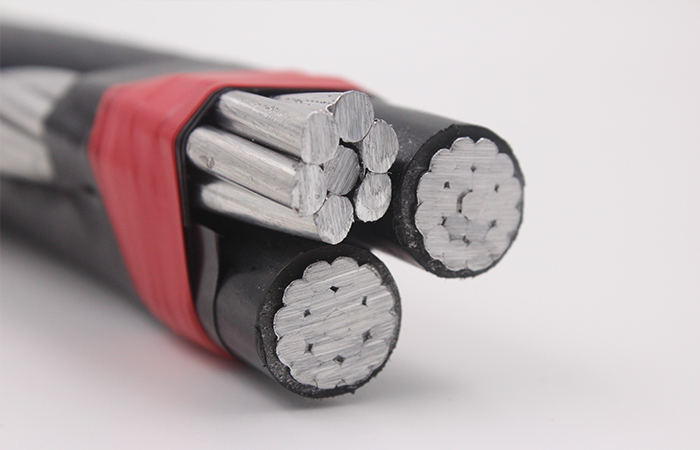

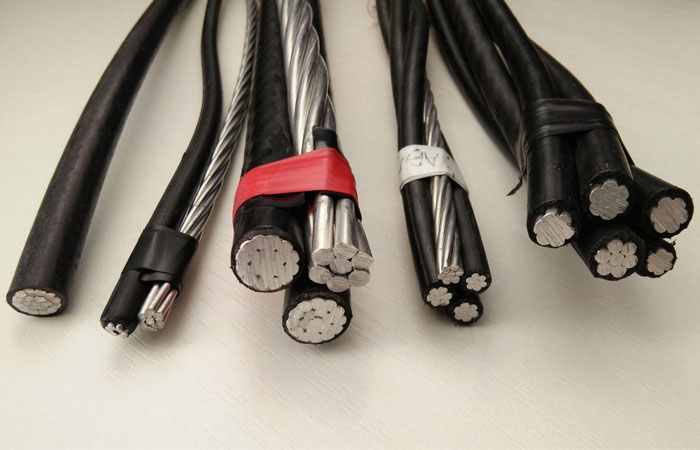

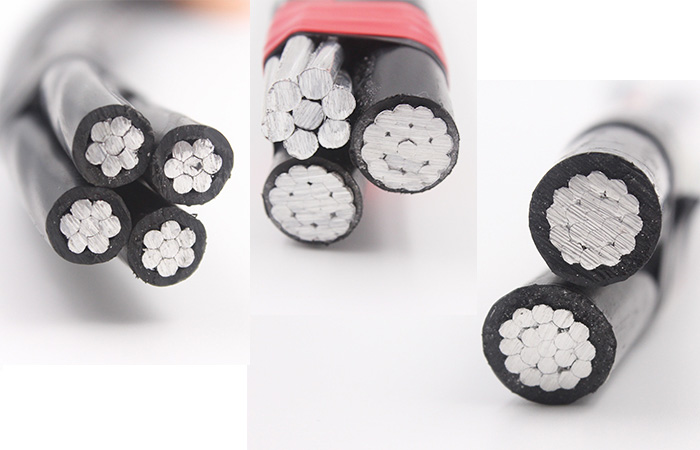

0.6/1kv Aerial bundled cable ABC cable

The basic construction is as following:

1),2,3,4 power cores consisting of strandard aluminium conductor,insulated with XLPE or PVC,PE.

2),One sheath lighting aluminium conductor with XLPE insulation(optional)

3),One messenger Al-alloy (bare or covered)

ABC cable meets or exceeds the following specification:

1),Aluminium wire,1350-H19 for electrical purposes.

2), Aluminium conductor,concentric-lay-stranded.

3), Aluminium conductor,concentric-lay-stranded,coated steel reinforgorced(ACSR,AAC,AAAC)

4),Concentric-lay stranded 6201-T81 conductors.

5),Compressed Round Stranded Aluminium consuctors using single input wire.

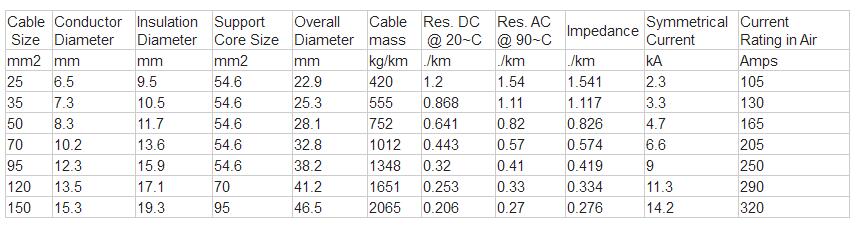

Specifications:

Conductor: Aluminum

Insulation: PVC ,XLPE,PE

Application: Overhead line

Core: 2.3,4 core( Duplex, triplex, quoduplex)
