Applications:

Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.

Standards:We could produce the cable according to many standards: ICEA S-76-474,ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC we will do our best to meet your requirements

Specification:

Phase conductor: Aluminum wire, 1350-H19

Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced

The material of insulation: XLPE,PE,PVC

The Voltage: 600V-2200V

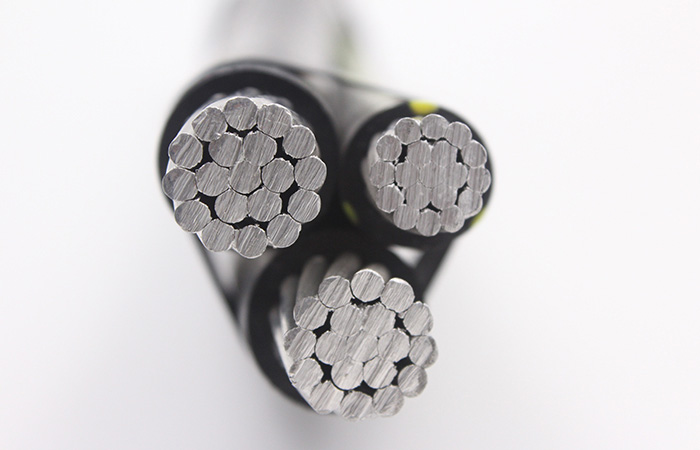

Triplex AAAC cable

Code Word	AWG or Kcmil	Neutral  AAAC	Phase AAC
Minex	2*6 AWG+1*30.58	7/1.68	1/4.11
Hippa	2*6 AWG+1*30.58	7/1.68	7/1.56
Prawn	2*4 AWG+1*48.69	7/2.12	1/5.19
Bamacle	2*4 AWG+1*48.69	7/2.12	7/1.96
Shrimp	2*2 AWG+1*77.47	7/2.67	7/2.47
Gammarus	2*1/0 AWG+1*123.3	7/3.37	7/3.12
Leda	2*1/0 AWG+1*123.3	7/3.37	19/1.89

Triplex ACSR cable

Code Word	AWG or Kcmil	Neutral  ACSR	Phase AAC
Paludina	2*6 AWG+1*6AWG	6+1 /1.68	1/4.11
Voluta	2*6 AWG+1*6AWG	6+1 /1.68	7/1.56
Calma	2*4 AWG+1*4AWG	6+1 /2.12 (1.52)	7/1.96
Periwinkle	2*4 AWG+1*4AWG	6+1 /2.12 (1.14)	7/1.96
Conch	2*2 AWG+1*2AWG	6+1 /2.67	7/2.47
Neritina	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	7/3.12
Cenia	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	19/1.89
