  • Quadruplex Service Drop ABC Cable
  • Quadruplex Service Drop ABC Cable
  • Quadruplex Service Drop ABC Cable
  • Quadruplex Service Drop ABC Cable
  • Quadruplex Service Drop ABC Cable

Quadruplex Service Drop ABC Cable

Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crossliked polyethylene insulated conductors.

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:Quadruplex Service Drop ABC Cable
  • +86-371-65341360
  • sale@sitongcable.com
  • 0086 15138668963
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:ABC
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage 0.6/1kV
    Application:Overhead
    Standard:BS IEC ASTM DIN
    Material:XLPE INSULATED CABLE
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum

    Overview

    Applications

    Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductors or 90℃ for crossliked polyethylene insulated conductors.

    Cable’s characteristics

    1) Rated voltage U0/U: 0.6/1kV.

    2) Installing temperature should not be below -20℃.

    3) Admissible bending radius to cable: When overall-diameter (D) is less than 25mm, it shoula be not less than 4D. When overall-diameter (D) is 25mm or more, it shoula be not less than 6D.

    Service drop cable meets or exceeds the following specifications:

    1) Aluminum Wire, 1350-H19 for Electrical Purposes.

    2) Aluminum Conductors,Concentric-Lay-Stranded.

    3) Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)

    4) Concentric-Lay-Stranded 6201-T81 Conductors

    5) Service drop cable meets or exceeds all application requirements of ANS/IEC S-76-474.

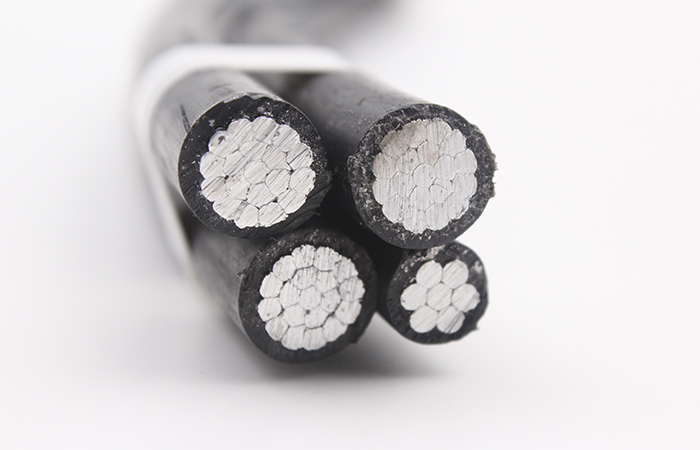

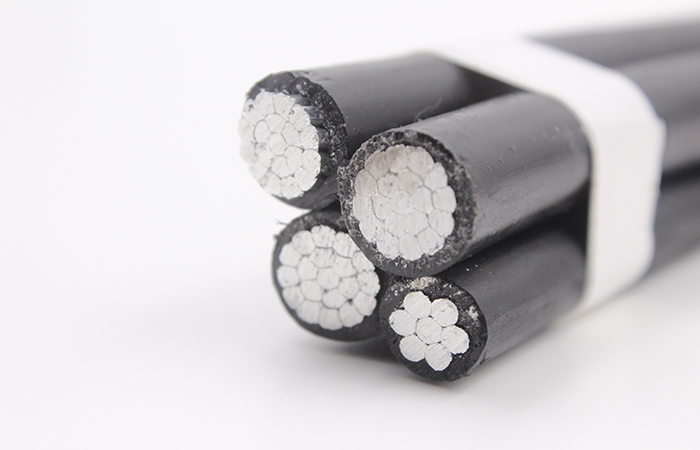

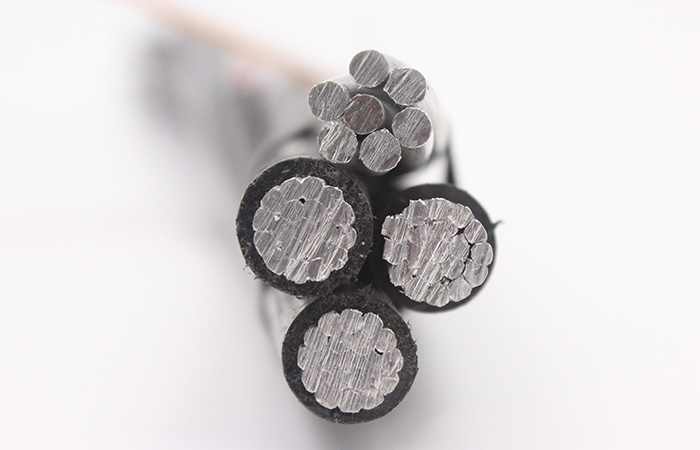

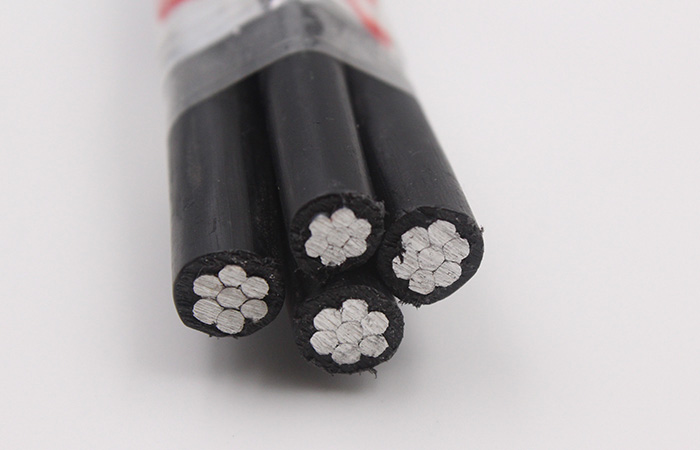

    Product Photo

    Quadruplex Service Drop ABC Cable

    Quadruplex Service Drop ABC Cable

    Quadruplex Service Drop ABC Cable

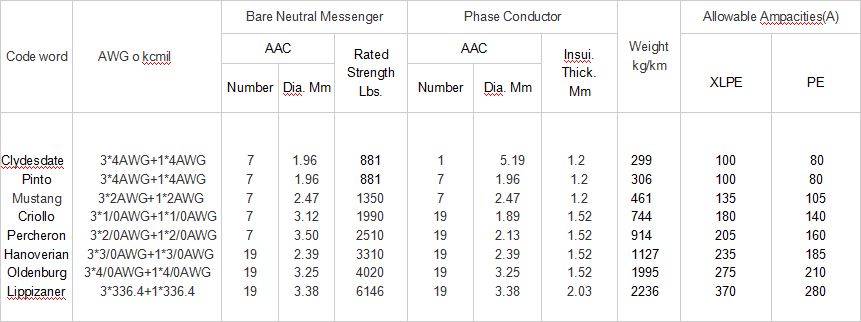

  • Quadruplex Service Drop ABC Cable parameter

  • Process

    Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

    Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

    We have ZERO tolerate for flaw products,quality you can trust.

    Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

    Third-party inspection is welcomed,we are happy to cooperate.

    RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength.

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.
