  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor
  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor
  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor
  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor
  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor

aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor

The ACSR / aluminum conductor with steel reinforcement is made through aluminum wire, aluminum cable and uses a main

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:Overhead Cable ACSR 13.3mm2 Conductor
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sitong
    Model Number:ACSR
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:overhead ground wires ,river crossings etc
    Standard:BS IEC ASTM DIN
    Material: aluminum conductor steel reinforced
    Package:Standard Wooden Drum
    Port:Qingdao ,/Shanghai / Tianjin
    Conductor Matel: Aluminum/steel

    Overview

    Description

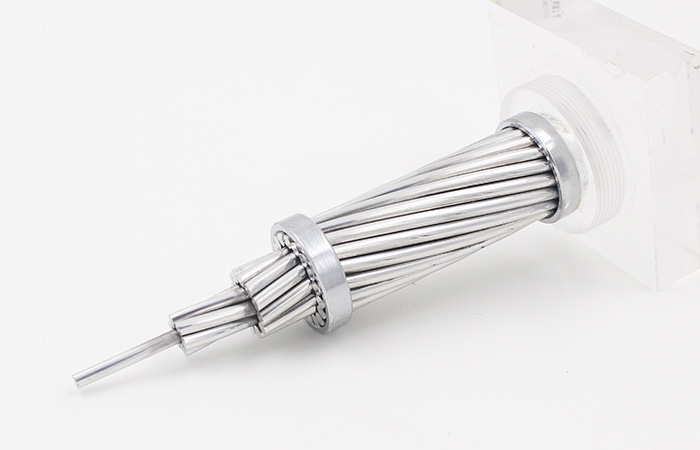

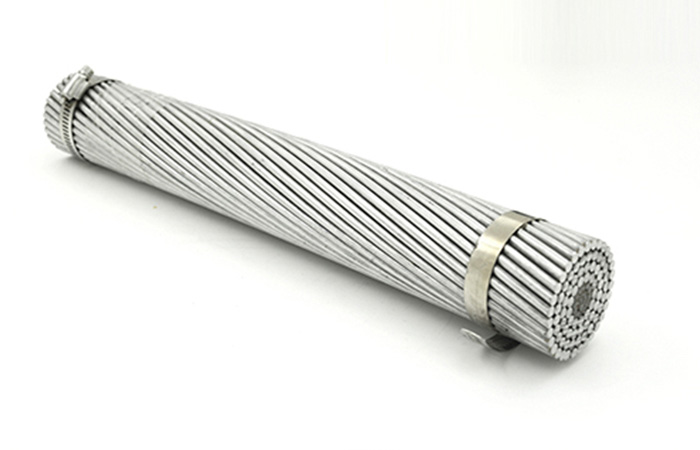

    The ACSR / aluminum conductor with steel reinforcement is made through aluminum wire, aluminum cable and uses a main line of power transmission. It is the inner part of the heart of steel, the aluminum cables are braided around the central cable in a spiral and according to certain rules. The steel core is used to improve the strength of the ASCR.

    Application

    With a simple structure, the aluminum conductor with steel reinforcement is easy to configure and maintain, low market costs and high transmission capacity. It is a disadvantage for this ASCR that is to be put through a valley or river or under other special geographical conditions.

    The ASCR has the advantage of having sound electrical conductivity, high mechanical resistance, high extension capacity, etc. The distance can be prolonged. This is used for power transmission lines and with various voltage levels, which play an important role in the field of electricity transmission.

    Construction

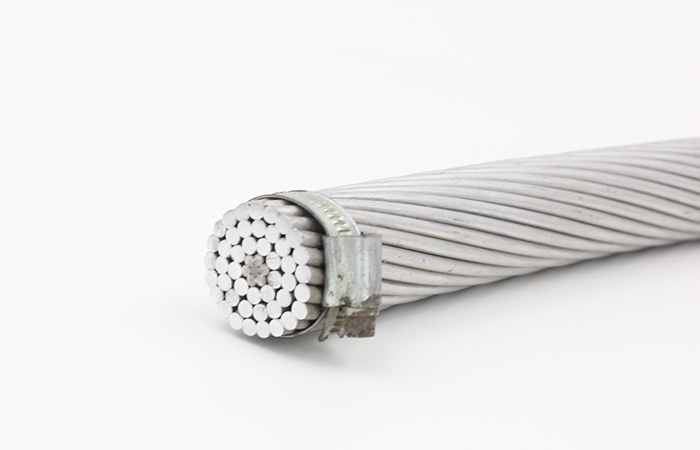

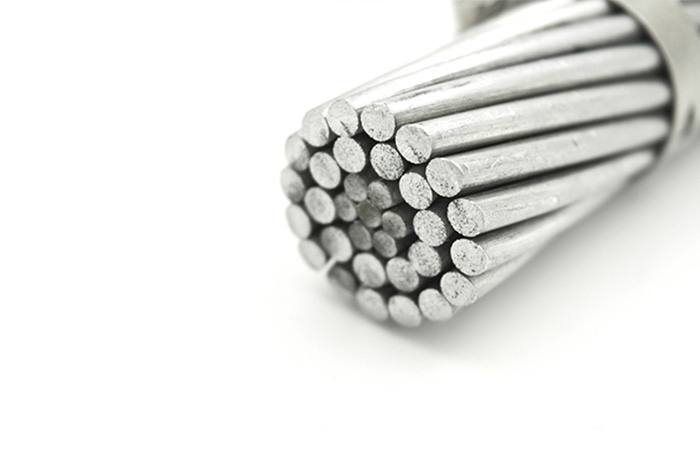

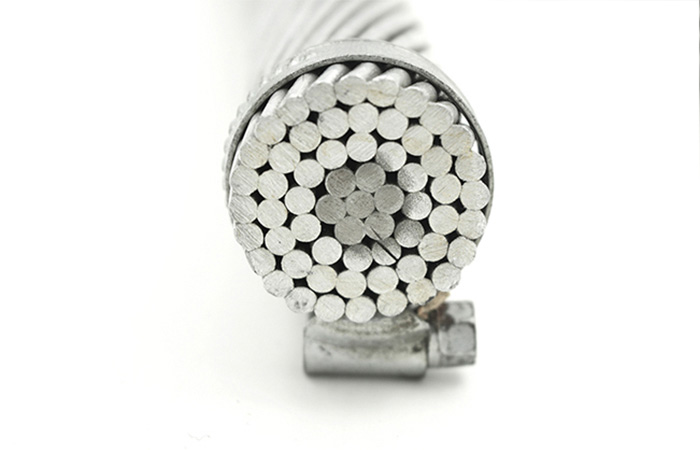

    ACSR is a conductor stranded in a concentric position in which it consists of a single core or central braided cable with a steel core with one or more layers of aluminum wire braided 1350H19. Steel core cables are protected from corrosion by means of galvanizing. Wire with alloy steel or zinc-5% aluminum with metal alloy coating. Static, high, extra and high strength steel are also available.

    Standard

    ASTM B 232, BS 215 Part 2, IEC 61089, DIN48204, etc.

    BS-215-2-70  ACSR

    Code Nominal Aera Stranding&Wire Diameter Approximate Overrall Diameter Sectional Aera Approximate weight Breaking Load DC Resistance zt 20℃ Currant rating
    Aluminum Steel Aluminium Steel Total
    mm² No. mm No. mm mm mm² mm² mm² Kg/km KN Ω/km A
    Gopher 25 6 2.36   2.36 7.08 26.2 0.0 26.2 72.1 9.61 1.093 126
    Weasel 30 6 2.59 1 2.59 7.77 31.6 5.3 36.9 128 11.45 0.9077 134
    Ferret 40 6 3 1 3 9 42.4 7.1 49.5 171.7 15.20 0.6766 161
    Rabbit 50 6 3.35 1 3.35 10.05 52.9 8.8 61.7 214.1 18.35 0.5426 185
    Horse 70 12 2.79 7 2.79 13.95 73.4 42.8 116.2 538.1 61.2 0.3936 268
    Dog 100 6 4.72 7 4.72 14.15 105.0 13.6 118.5 394.7 32.7 0.2733 278
    Wolf 150 30 2.59 7 2.59 18.13 158.1 36.9 194.9 725.9 69.2 0.1828 355
    Dingo 150 18 3.35 1 3.35 16.75 158.7 8.8 167.5 507.4 35.7 0.1815 349
    Lynx 175 30 2.79 7 2.79 19.53 183.4 42.8 226.2 842.4 79.8 0.1576 386
    Caracal 175 18 3.61 1 3.61 18.05 184.2 10.2 194.5 589.2 41.10 0.1563 383
    Panther 200 30 3 7 3 21 212.1 49.5 261.5 974.0 92.25 0.1363 421
    Jaguar 200 18 3.86 1 3.86 19.3 210.6 11.7 222.3 673.6 46.55 0.1367 415
    Zebra 400 34 3.18 7 3.18 28.62 428.9 55.6 484.5 1621.3 131.90 0.06741 635

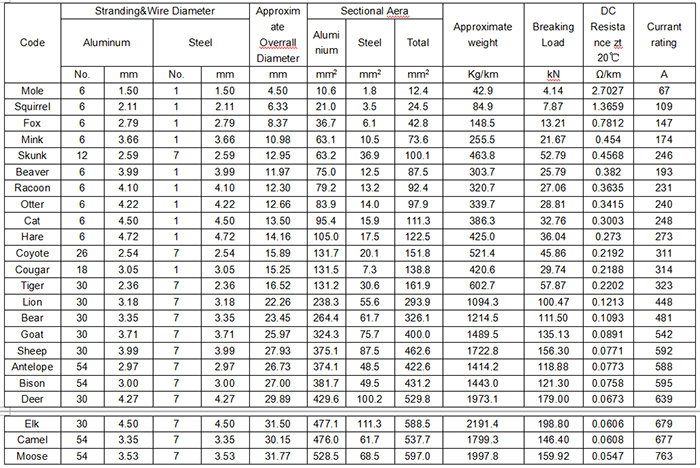

    BS EN 50182:2001 ACSR

    Code Stranding&Wire Diameter Approximate Overrall Diameter Sectional Aera Approximate weight Breaking Load DC Resistance zt 20℃ Currant rating
    Aluminum Steel Aluminium Steel Total
    No. mm No. mm mm mm2 mm2 mm2 Kg/km kN Ω/km A
    Mole 6 1.50 1 1.50 4.50 10.6 1.8 12.4 42.9 4.14 2.7027 67
    Squirrel 6 2.11 1 2.11 6.33 21.0 3.5 24.5 84.9 7.87 1.3659 109
    Fox 6 2.79 1 2.79 8.37 36.7 6.1 42.8 148.5 13.21 0.7812 147
    Mink 6 3.66 1 3.66 10.98 63.1 10.5 73.6 255.5 21.67 0.454 174
    Skunk 12 2.59 7 2.59 12.95 63.2 36.9 100.1 463.8 52.79 0.4568 246
    Beaver 6 3.99 1 3.99 11.97 75.0 12.5 87.5 303.7 25.79 0.382 193
    Racoon 6 4.10 1 4.10 12.30 79.2 13.2 92.4 320.7 27.06 0.3635 231
    Otter 6 4.22 1 4.22 12.66 83.9 14.0 97.9 339.7 28.81 0.3415 240
    Cat 6 4.50 1 4.50 13.50 95.4 15.9 111.3 386.3 32.76 0.3003 248
    Hare 6 4.72 1 4.72 14.16 105.0 17.5 122.5 425.0 36.04 0.273 273
    Coyote 26 2.54 7 2.54 15.89 131.7 20.1 151.8 521.4 45.86 0.2192 311
    Cougar 18 3.05 1 3.05 15.25 131.5 7.3 138.8 420.6 29.74 0.2188 314
    Tiger 30 2.36 7 2.36 16.52 131.2 30.6 161.9 602.7 57.87 0.2202 323
    Lion 30 3.18 7 3.18 22.26 238.3 55.6 293.9 1094.3 100.47 0.1213 448
    Bear 30 3.35 7 3.35 23.45 264.4 61.7 326.1 1214.5 111.50 0.1093 481
    Goat 30 3.71 7 3.71 25.97 324.3 75.7 400.0 1489.5 135.13 0.0891 542
    Sheep 30 3.99 7 3.99 27.93 375.1 87.5 462.6 1722.8 156.30 0.0771 592
    Antelope 54 2.97 7 2.97 26.73 374.1 48.5 422.6 1414.2 118.88 0.0773 588
    Bison 54 3.00 7 3.00 27.00 381.7 49.5 431.2 1443.0 121.30 0.0758 595
    Deer 30 4.27 7 4.27 29.89 429.6 100.2 529.8 1973.1 179.00 0.0673 639
    Elk 30 4.50 7 4.50 31.50 477.1 111.3 588.5 2191.4 198.80 0.0606 679
    Camel 54 3.35 7 3.35 30.15 476.0 61.7 537.7 1799.3 146.40 0.0608 677
    Moose 54 3.53 7 3.53 31.77 528.5 68.5 597.0 1997.8 159.92 0.0547 763



    Product Photo

     aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor

     aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor

     aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor

  •  aluminum cable ACSR Aluminum Conductor Steel Reinforceed BS EN SCA bare conductor parameter

  • Process

    Quadruplex Service Drop Aluminum Conductor Cable manufacture main process contains more than 10 sub-processes and every main process has a quality gateway.

    Main core processes containers the following procedures as Raw Material Inspection,Conductor Drawing,Conductor Stranding,Insulation Extrusion,Multi-cores Cabling,Qualified Finished Cable in Storage,Package etc.

    We have ZERO tolerate for flaw products,quality you can trust.

    Factory and capacity has been verified by Bureau Veritas as well as a series of inspections including CCC,ISO,OHSAS etc.

    Third-party inspection is welcomed,we are happy to cooperate.

    RMJT Quadruplex Service Drop Aluminum Conductor Cable package status

    Package

    Finished Quadruplex Service Drop Aluminum Conductor Cables are rolled to steel/wooden reels,some called drum or spool,which can be easily load into shipping container and unpacked for on-site installation.

    Drum/Spool are covered with plastic film for water-proof and sealed with pined slabs.

    Outer surface of reel/drum is reinforced with steel strip for additional strength.

    Our package measures are more than solid for overseas shipping.

    Package Diameter of Reel/Drum can vary with your requirement,both steel and wood available.

  • Service

    Quick Inquiry, Business Opportunities!!!
