Low voltage Aerial Bundle Conductor ABC Cables overhead overhead transmission line

LV Aerial Bundle Conductor (ABC) Cables - SITONG Cables Aerial Bundle Cable (ABC cable) is more innovative than the conventional bare conductor overhead.Our overhead insulated cable have formed a system ,such as single core,two-core,three-core and four-core.There are conductors of aluminum,copper or aluminum conductors steel-reinforced.

  • Supply Ability:5000 Kilometer/Kilometers per Month
  • Transport: Shipping
  • Parameter:LV aerial bundle conductor
  • Quick Details

    Place of Origin:China henan
    Brand Name:SITONG
    Model Number:Triplex Service Drop
    MOQ:1kilometer
    Certificate:ISO9001
    Voltage:Low Voltage
    Application:Overhead Cable
    Standard:BS IEC ASTM DIN
    Material:XLPE insulation
    Package:Wooden drum or customized
    Port:Qingdao or Shanghai
    Conductor Matel: Aluminum conductor/ACSR CONDUCTOR/aluminum alloy

    Overview

    Applications:

     ABC cable(aerial bundle cable)is primarily used for overhead service applications such as street lighting,outdoor lighting ,and temporary service for construction.To be used at voltage of 600V phase -to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene insulated conductor or 90℃ for crossliked polyethylene(XLPE) insulated conductors.

    Our overhead insulated cable have formed a system ,such as single core,two-core,three-core and four-core.There are conductors of aluminum,copper or aluminum conductors steel-reinforced.We can manufacture the overhead insulated cable not only in accordance with China’s standard GB12557-90 but also the other standards and special requirement by the customers.


     Standards:

    We could produce the cable according to many standards: ICEA S-76-474,  ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC

    we will do our best to meet your requirements

    Specification:

    1. Phase conductor: Aluminum wire, 1350-H19

    2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor (AAAC)6201, Aluminum Conductor Steel Reinforced(ACSR)

    3. The material of insulation: XLPE,PE,PVC

    4. The Voltage: 600V-2200V

    Name Conductor Average insulation thickness Cable
      Sectional area Number Resistance Diameter Pulling force   Outer diameter
      (mm2   20℃(Ω/km) Min(mm) Max
    (mm)
    Min
    (daN)
    (mm) min(mm) Max
    (mm)
    Phase Wire 16 7 1.91 4.6 5.1 190 1.2 7 7.8
    25 7 1.2 5.8 6.3 300 1.4 8.6 9.4
    35 7 0.868 6.8 7.3 - 1.6 10 10
    50 7 0.641 7.9 8.4 - 1.6 11.1 12
    70 12 0.443 9.7 10.2 - 1.8 13.3 14.2
    95 19 0.32 11 12 - 1.8 14.6 15.7
    120 19 0.253 12 13.1 - 1.8 15.6 16.7
    150 19 0.206 13.9 15 - 1.7 17.3 18.6
    Neutral Wire 54.6 7 0.63 9.2 9.6 1660 1.6 12.3 13
    70 7 0.5 10 10.2 2050 1.5 12.9 13.6
    95 19 0.343 12.2 12.2 2750 1.6 15.3** 16.3**
    Lighting wire 1.5 1 12.1   1.5   1.2 3.7 4.2
    **Provisional value

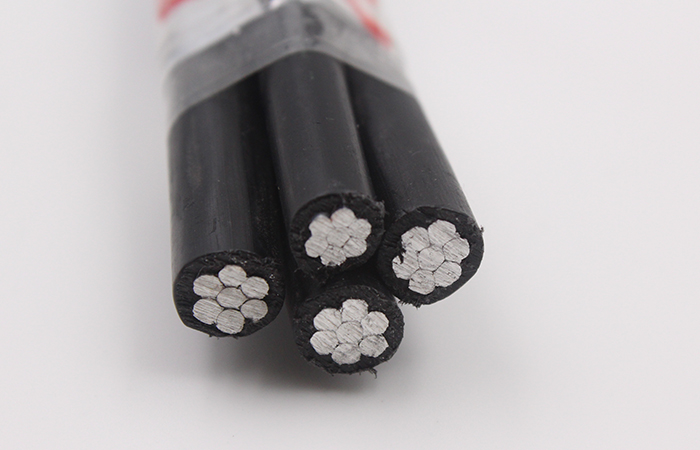

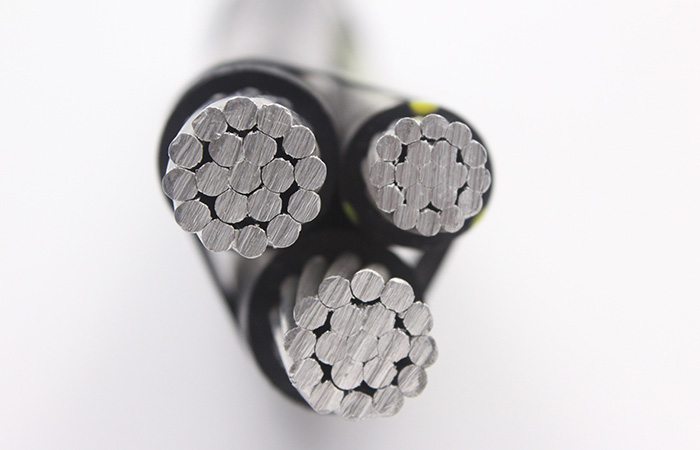

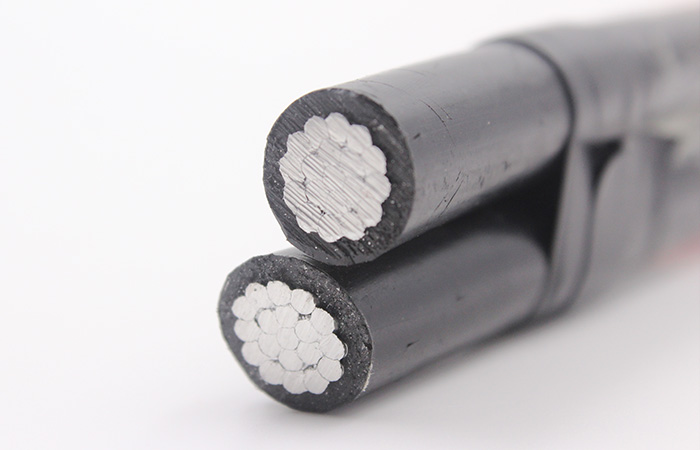

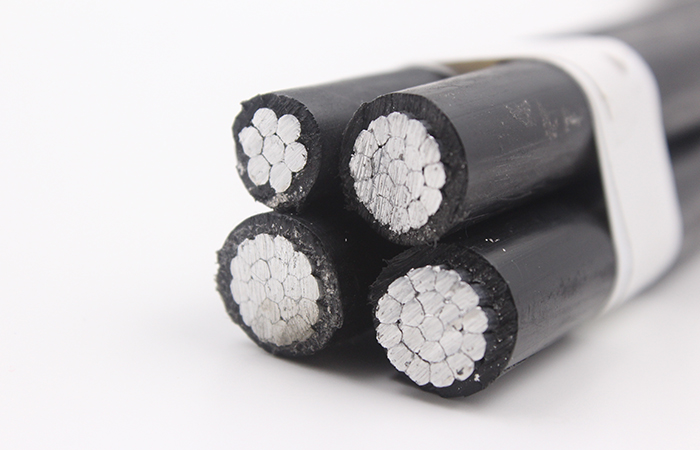

    Product Photo

    Low voltage Aerial Bundle Conductor ABC Cables overhead overhead transmission line

    Low voltage Aerial Bundle Conductor ABC Cables overhead overhead transmission line

    Low voltage Aerial Bundle Conductor ABC Cables overhead overhead transmission line

  • Low voltage Aerial Bundle Conductor ABC Cables overhead overhead transmission line parameter

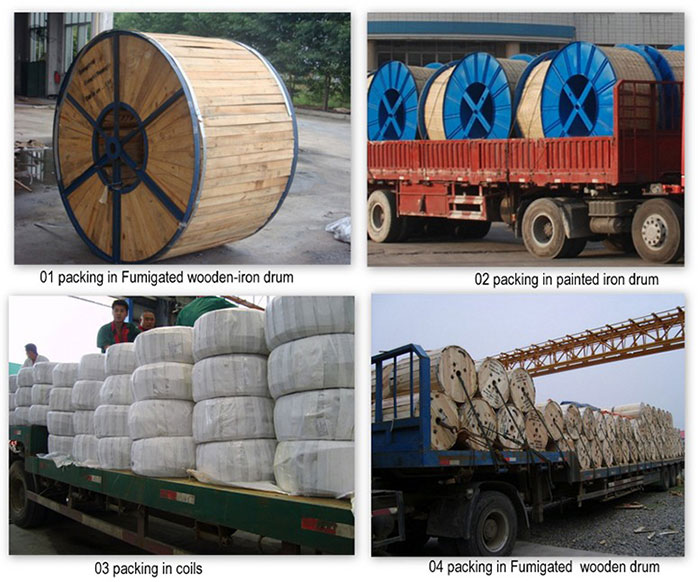

  • Packing Details:

    For the Low Volatge Aluminum Wire Conductor Underground Cable ,we usually use the standard wooden drum to package with this belowing picture.We  also can design different and various package types according to the customer's  special requirements.

     All cables will be packed in rool or different sizes wooden reels according to their outside diameter and net weight.

    1. We use fumigated & treated timber wooden reel to package cables.

    2.Frequently-used reel sizes: 0.7*0.7*0.7m, 1.1*1.1*0.8m, 1.8*1.8*1.1m, 2.2*2.2*1.8m, or as customer's reauests

    3. Wooden plate sealed.

    4. 72 pcs of 0.7m wooden reel can be put in one 20FCL.

    28 pcs of 1.1m wooden reel can be put in one 20FCL.

    6 pcs of 1.8m wooden reel can be put in one 20FCL.
